Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

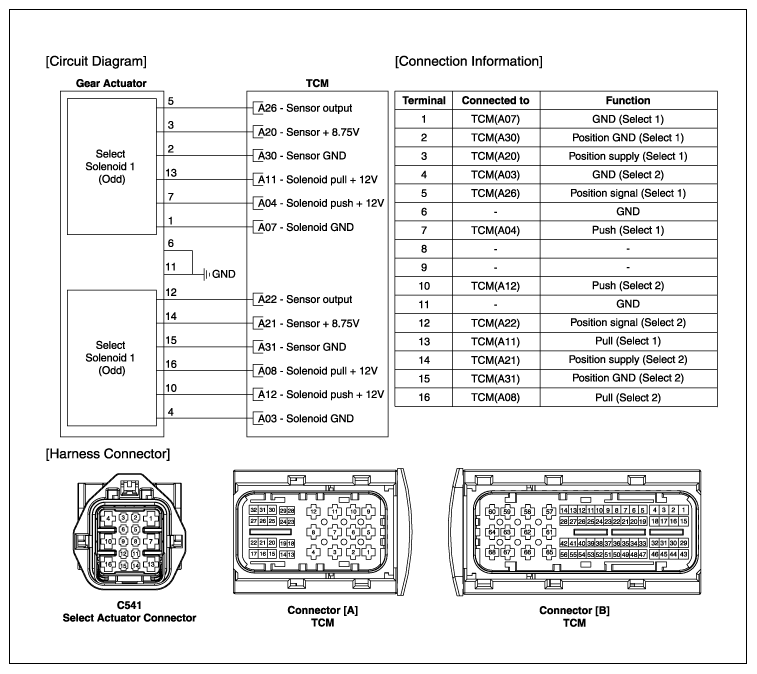

Fig 1: Gear Actuator Assembly Circuit (1 Of 2)
G11987502Courtesy of HYUNDAI MOTOR AMERICA

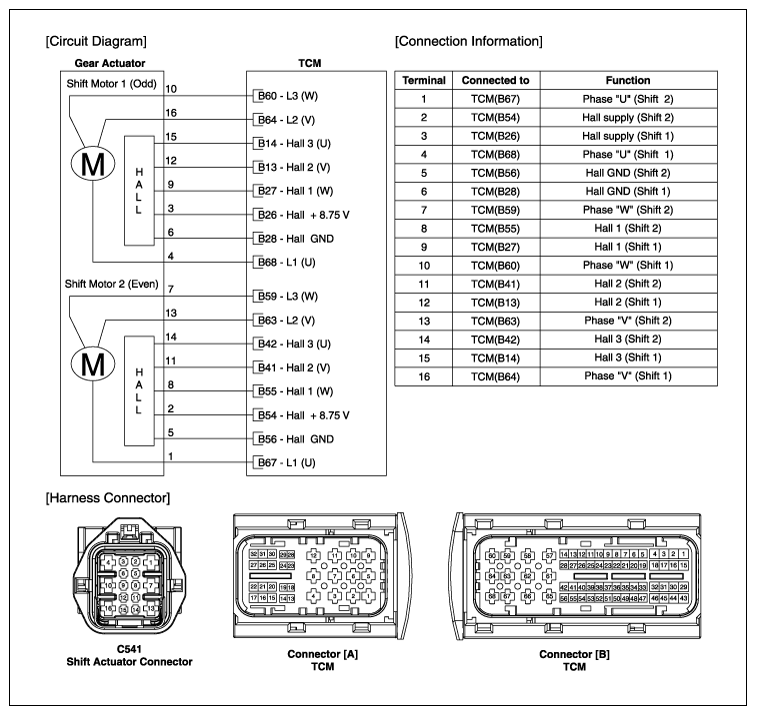

Fig 2: Gear Actuator Assembly Circuit (2 Of 2)
G11987503Courtesy of HYUNDAI MOTOR AMERICA
