Section 37 (Dual Clutch Transmission Control System - 1.6L (Except HEV))
>>
Description And Operation
>>
Control System Logic
Control System Logic
WARNING:
This page is about a different variant/trim than selected.

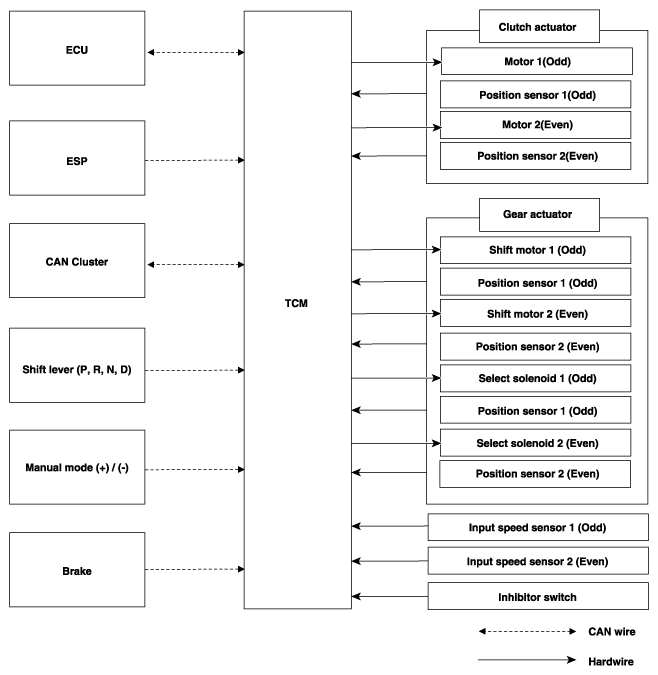

Fig 1: Dual Clutch Transmission Control System Communication Diagram - Control System Logic
Courtesy of HYUNDAI MOTOR AMERICA
