Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Perform wear compensation when you have replaced the motor as well as the dual clutch assembly or clutch actuator. (Refer to Clutch Actuator Assembly - "ADJUSTMENT ")

If you only replaced the motor, install the clutch actuator motor.
NOTE:
- Do not reuse a O-ring (A), and sealing bolt (B).
Fig 1: Locating O-Ring And Sealing Bolt
Courtesy of HYUNDAI MOTOR AMERICA
Check the assembled state of the dowel pins (A) before installing the clutch actuator assembly.

Fig 2: Locating Dowel Pins
Courtesy of HYUNDAI MOTOR AMERICA
Perform the clutch touch point learning procedure using the GDS.

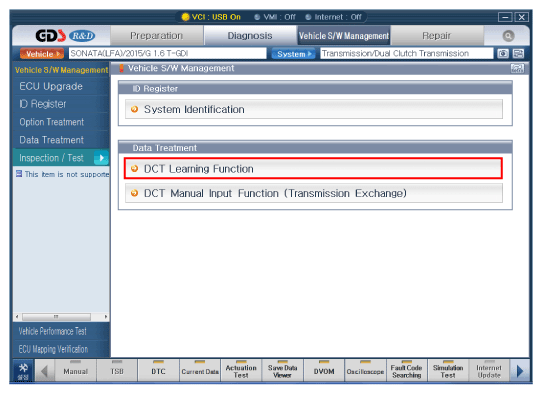

Fig 3: Scantool Display - DCT Learning Function
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Even if you removed and reinstalled the clutch actuator, be sure to perform the touch point learning.
- If you have replaced the dual clutch assembly or clutch actuator, be sure to perform the touch point learning.
