Component Inspection
WARNING: This page is about a different variant/trim than selected.
■ PCV Inspection
- IG "OFF". Remove PCV valve from rocker cover.
- Insert a thin tool into the PCV valve from the threaded side and verify that the plunger is moving.
- Is the PCV valve moving correctly?
YES
- Go to "Injector Operation Inspection" as follows.
NO
- Replace PCV. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
■ Injector Operation Inspection
- Start engine.

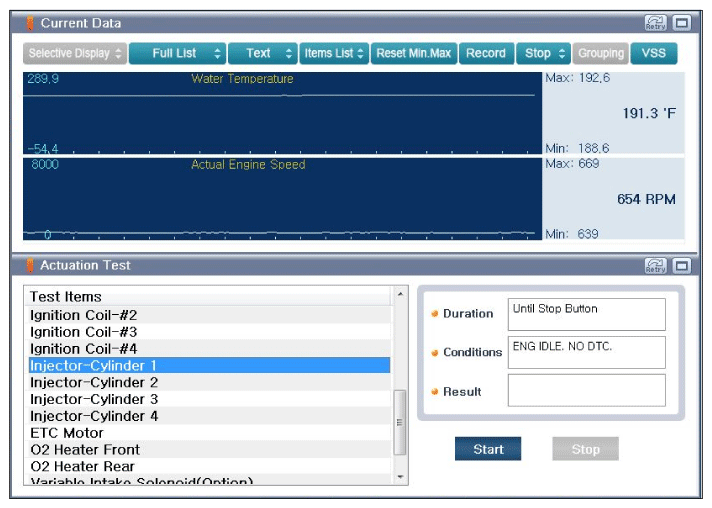

- Check that RPM decrease when performing the injector's "Actuation Test".NOTE: The purpose of this test is to determine if there is a fault in fuel injection. Start this test in stable idle to get an accurate result.
- Is there any cylinder with no change in RPM or only a small change in RPM?
YES
- Check injector for contamination, deterioration, or damage. Substitute with a known-good injector and check for proper operation. If the problem is corrected, replace injector and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
