GDS data analysis

WARNING: This page is about a different variant/trim than selected.

Connect GDS and select "Current Data" mode
Warm up the engine.
Monitor the parameters related to DTC on the "Current Data" menu of the GDS below while press and depress gas pedal.

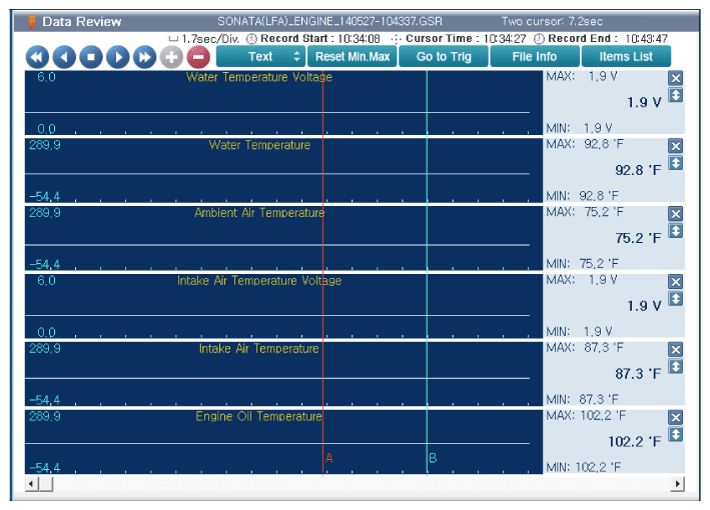

Fig 1: Screen Display - Parameters Related To DTC On Current Data Menu Of GDS (Engine Start Time)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Screen Display - Parameters Related To DTC On Current Data Menu Of GDS (Engine Warmed Up State)
Courtesy of HYUNDAI MOTOR AMERICA
Is parameter displayed within specifications?
YES
- Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to next step.
