Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

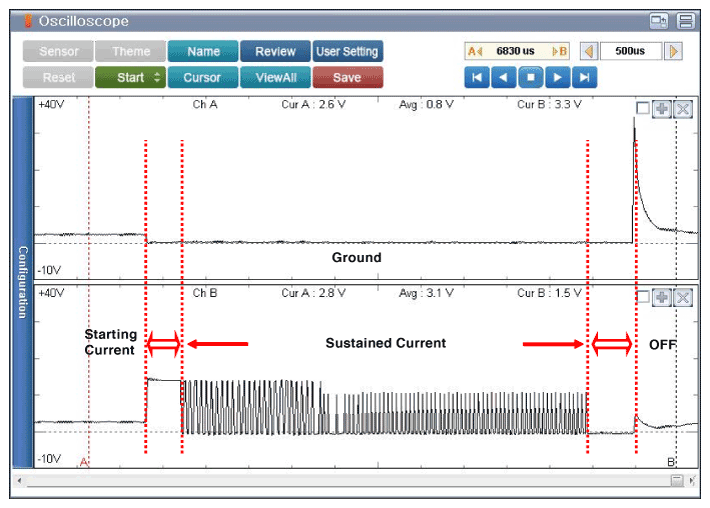

Fig 1: Screen Display - Normal Waveform Of Fuel Pressure Regulator At Idle
G11992330Courtesy of HYUNDAI MOTOR AMERICA
