Control Circuit Inspection

WARNING: This page is about a different variant/trim than selected.
  1. IG "OFF".
  2. Disconnect OCV (Exhaust) connector.
  3. IG "ON" & Engine "OFF"
  4. Measure voltage between control terminal of the OCV (Exhaust) harness connector and chassis ground.

    Specification:  Approx. 2.2 V

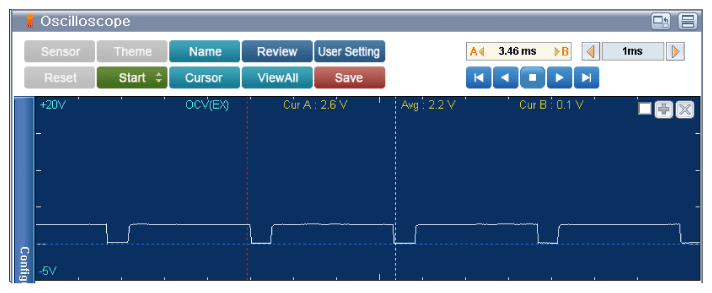

    Fig 1: Screen Display - Signal Waveform Of OCV (Exhaust)
    G11992302Courtesy of HYUNDAI MOTOR AMERICA
  5. Is voltage within specification?

    YES

    • Go to "Component Inspection" procedure below.
    • Repair open or short to ground in control circuit and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
