Component Inspection: Notes

■ RCV Actuation Test

1. Connect GDS and select "Actuation Test" mode.
2. Start the engine.
3. Start 'Turbo Charger Bypass Valve' components.

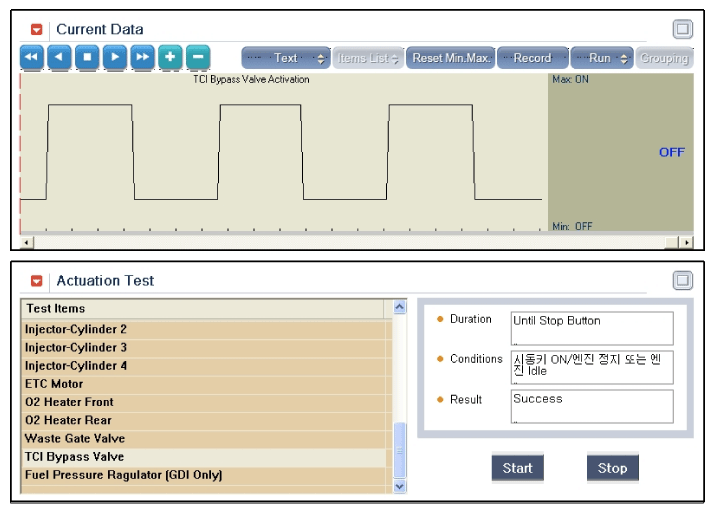

   Fig 1: Screen Display - Turbo Charger Bypass Valve

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the waveform normal?

   YES

   • Go to next step below.

   NO

   • Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

■ RCV Resistance Inspection

1. IG "OFF".
2. Disconnect RCV connector.
3. Measure resistance between power terminal and control terminal of the sensor connector (Component side)

   Specification:

   ITEM	Resistance (Ω)
   Normal Parameter At 20°C (68°F)	28.3 ~ 31.1

4. Is the measured resistance within specification?

   YES

   • Go to next step below.

   NO

   • Substitute with a known - good RCV and check for proper operation. If the problem is corrected, replace RCV and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
