E-CVVT Learning Value Erasing

WARNING: This page is about a different variant/trim than selected.

Connect GDS to DLC connector.
IG "ON".
Perform "E-CVVT Learning Value Erasing" in "Vehicle S/W Management" menu on GDS. (Fig 1)
NOTE: When the learned value for electronic cam position is erased, start learning the cam position while cranking. When it is completed, engine is started.
Cranking should be repeated for maximum 2 to 3 for learning.

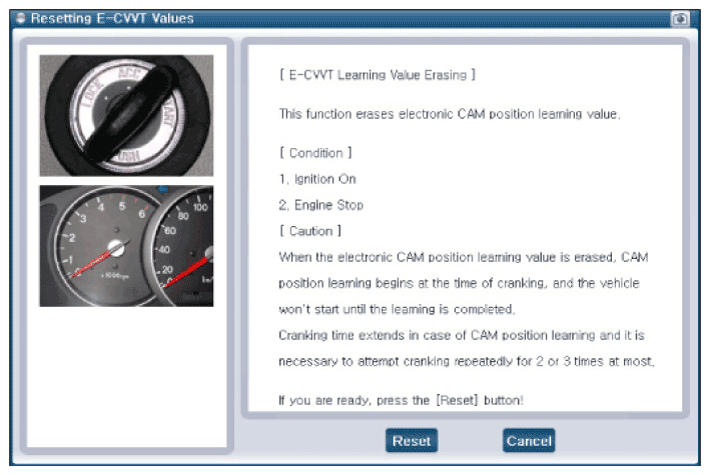

Fig 1: Screen Display - E-CVVT Learning Value Erasing In Vehicle S/W Management Menu On GDS

Courtesy of HYUNDAI MOTOR AMERICA
