Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.
Fig 1: Screen Display - Normal Waveform Of Crankshaft Position Sensor And Cam Position Sensor At Idle
G11992211Courtesy of HYUNDAI MOTOR AMERICA

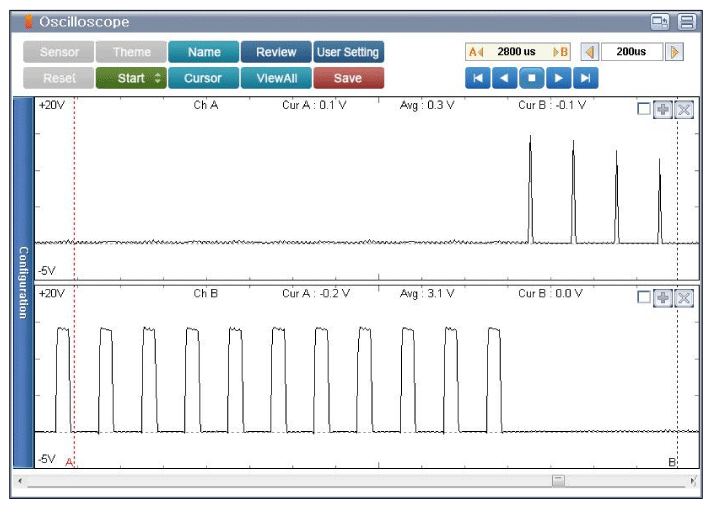

Fig 2: Screen Display - Normal Waveform Of E-CVVT Motor Control Terminal At Acceleration
G11992212Courtesy of HYUNDAI MOTOR AMERICA
