GDS data analysis
WARNING: This page is about a different variant/trim than selected.
- Connect GDS and select "Current Data" mode
- Warm up the engine.
- Monitor the parameters related to DTC on the "Current Data" menu of the GDS below.
Courtesy of HYUNDAI MOTOR AMERICA

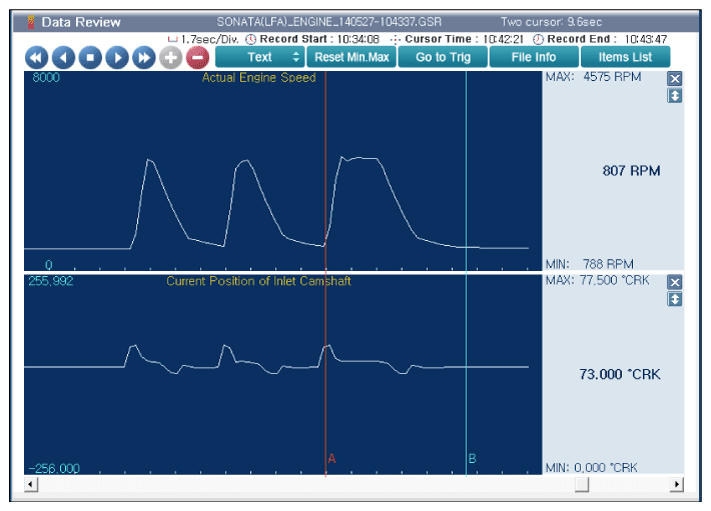

- Current position of inlet camshaft is varied according to actual engine speed
- Is parameter displayed within specifications?
YES
- Fault is intermittent. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to next step.
