Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

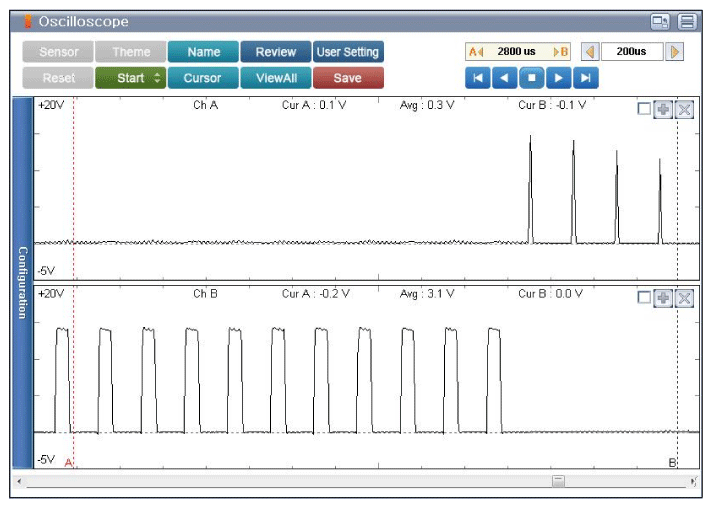

Fig 1: Screen Display - Normal Waveform Of E-CVVT Motor Control Terminal At Acceleration
G11992206Courtesy of HYUNDAI MOTOR AMERICA

Normal waveform of E-CVVT motor control terminal at acceleration.
