Section 29 (Engine Control System - 2.0L (Except HEV))
>>
E-CVVT Motor
>>
Schematic Diagram
Schematic Diagram
WARNING:
This page is about a different variant/trim than selected.

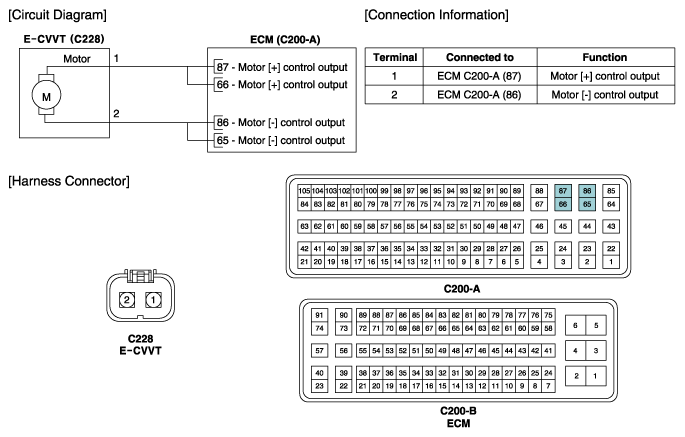

Fig 1: E-CVVT Motor Circuit
Courtesy of HYUNDAI MOTOR AMERICA
