Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

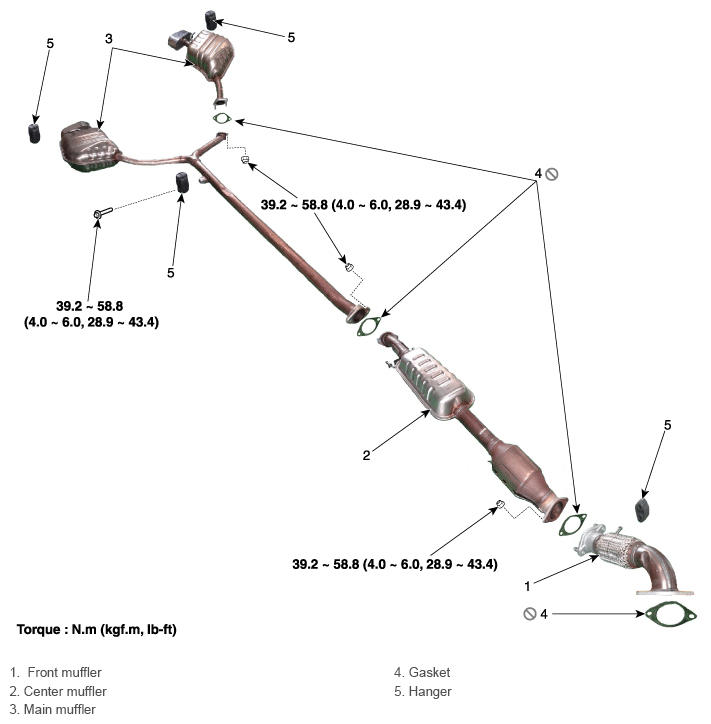

Fig 1: Muffler And Catalytic Converter Components With Torque Specification
G11994121Courtesy of HYUNDAI MOTOR AMERICA
