Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

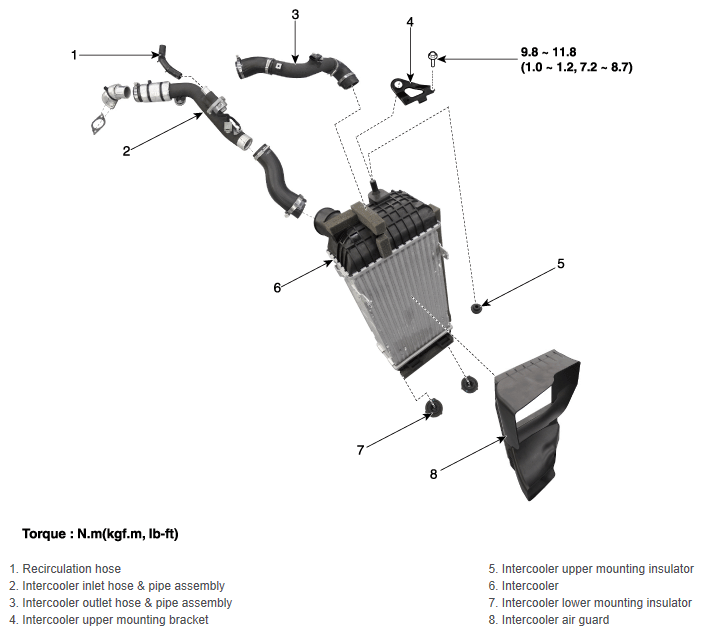

Fig 1: Intercooler Components With Torque Specification
G11994086Courtesy of HYUNDAI MOTOR AMERICA
