Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

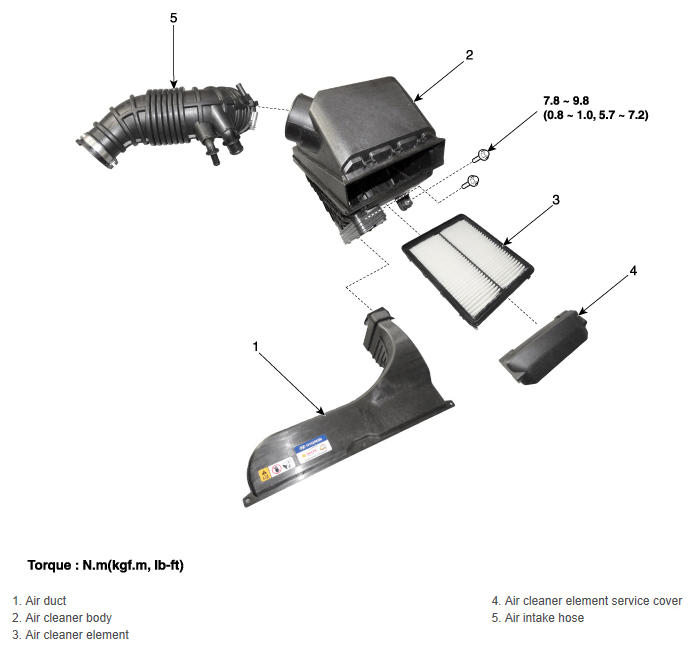

Fig 1: Air Cleaner Components With Torque Specification
G11994080Courtesy of HYUNDAI MOTOR AMERICA
