Section 27 (Fuel Delivery System - 2.0L (Except HEV))
>>
Components and Components Location
>>
Components Location
>>
[Fuel Tank]
[Fuel Tank]
WARNING:
This page is about a different variant/trim than selected.

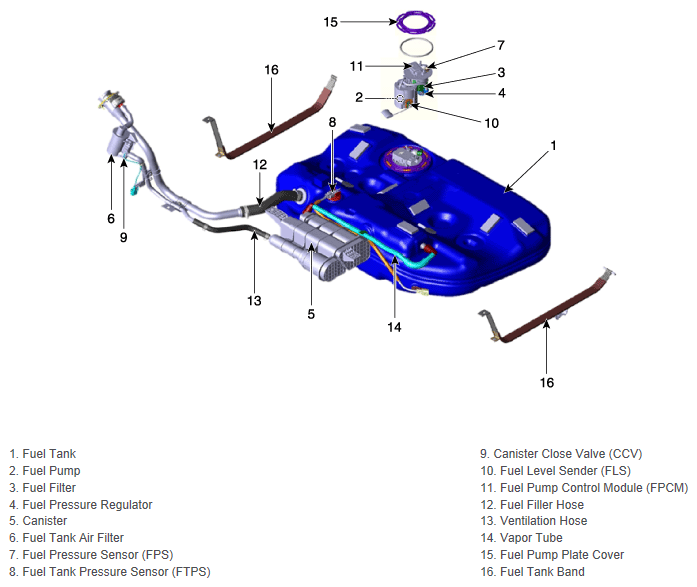

Fig 1: Fuel Tank Components Location
Courtesy of HYUNDAI MOTOR AMERICA
