Components Location (2)

WARNING: This page is about a different variant/trim than selected.

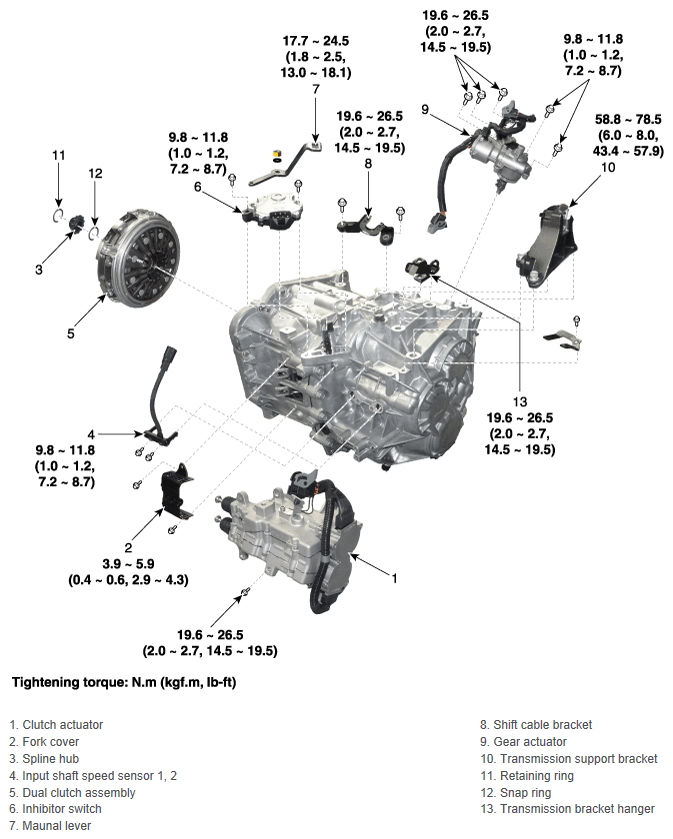

Fig 1: Dual Clutch Transmission Components With Torque Specifications (2 Of 2)
G11987427Courtesy of HYUNDAI MOTOR AMERICA
