Components Location (1)

WARNING: This page is about a different variant/trim than selected.

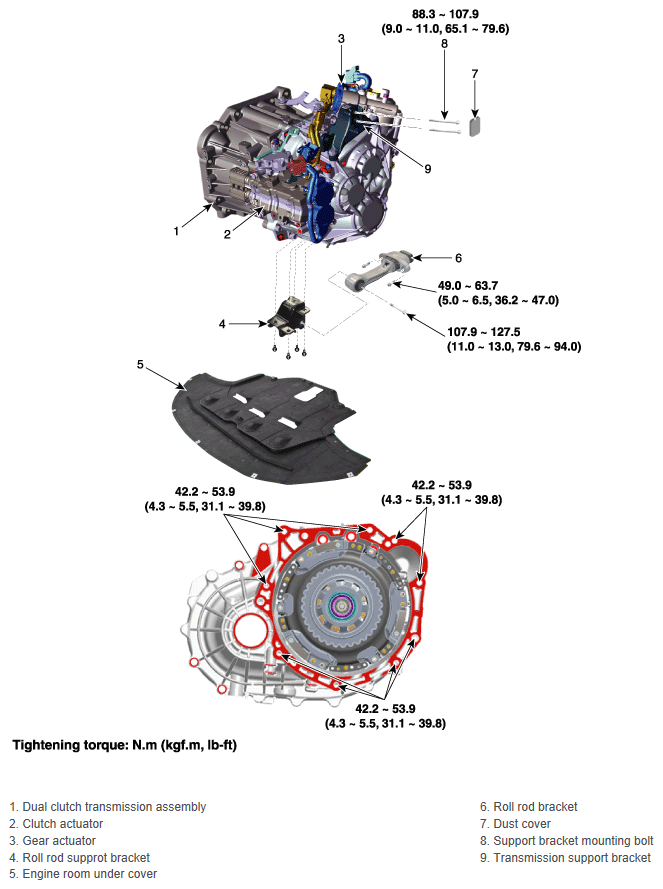

Fig 1: Dual Clutch Transmission Components With Torque Specifications (1 Of 2)
G11987426Courtesy of HYUNDAI MOTOR AMERICA
