Section 24 (Charging System - 1.6L (Except HEV)): Battery: Troubleshooting

WARNING: This page is about a different variant/trim than selected.

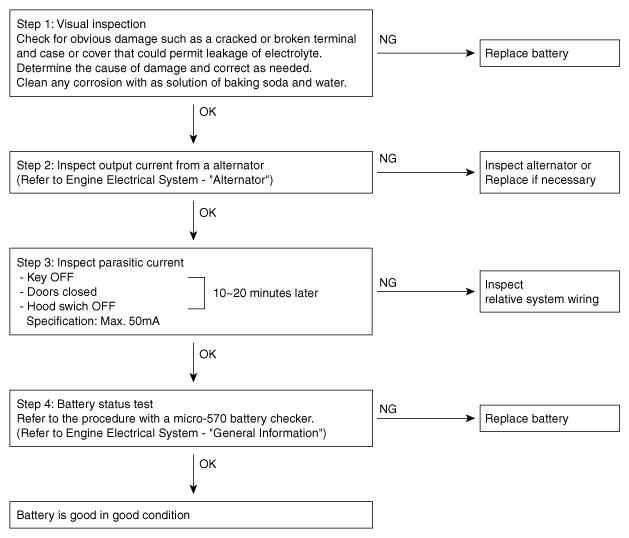

Fig 1: Battery Troubleshooting Chart
G11987094Courtesy of HYUNDAI MOTOR AMERICA
