Section 23 (Engine Control System - 1.6L (Except HEV))
>>
Heated Oxygen Sensor (HO2S)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

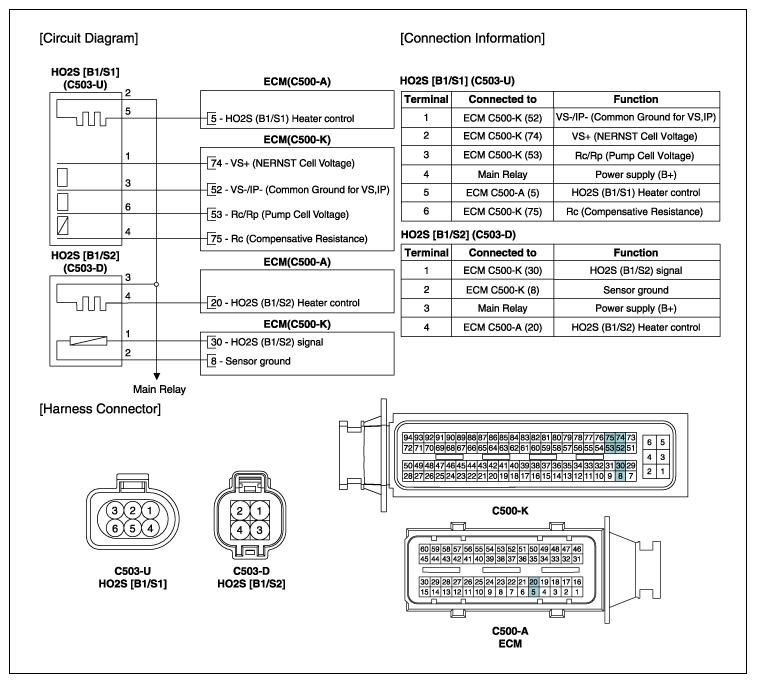

Fig 1: Heated Oxygen Sensor Circuit
Courtesy of HYUNDAI MOTOR AMERICA
