Section 23 (Engine Control System - 1.6L (Except HEV))
>>
Electric WGT Control Actuator
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

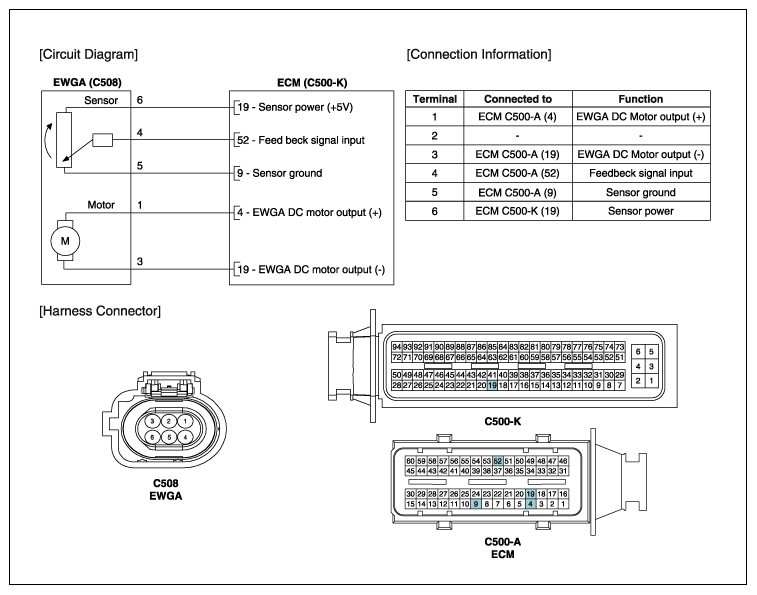

Fig 1: Electric Waste Gate Actuator Circuit
Courtesy of HYUNDAI MOTOR AMERICA
