Section 22 (Cylinder Head Assembly - 1.6L (Except HEV))
>>
CVVT & Camshaft
>>
Components And Components Location
>>
Components Location
Components Location
WARNING:
This page is about a different variant/trim than selected.

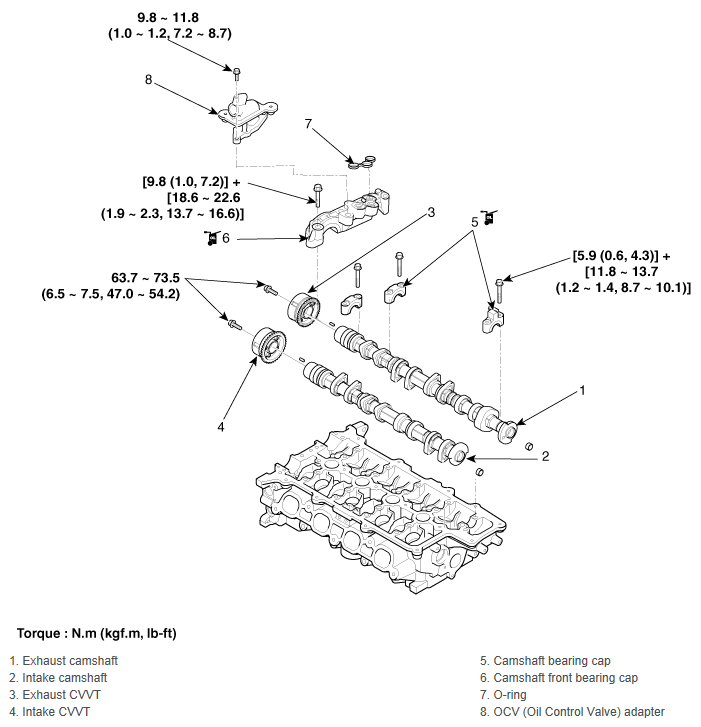

Fig 1: CVVT And Camshaft Components With Torque Specifications
Courtesy of HYUNDAI MOTOR AMERICA
