Special Service Tools

WARNING: This page is about a different variant/trim than selected.
AUTOMATIC TRANSAXLE SYSTEM SPECIAL SERVICE TOOLS

Tool (Number and Name) Illustration Use
09200-3N000 Engine support fixture (Beam)
G11994666
 Removal and installation of the transaxle. Use this beam (SST No.: 09200-3N000) with the supporter (SST No.: 09200-2S000).
Permit operating with 09200-38001.
Refer to the engine support fixture assembly drawing below.
09200-2S000 Engine support fixture (Supporter)
G11994667
 Removal and installation of the transaxle.
Use this beam (SST No.: 09200-38001/3N000) with the supporter (SST No.: 09200-2S000).
Refer to the engine support fixture assembly drawing below.
09453-3L240 Oil seal installer
G11994668
 Installation of the differential oil seal in the transaxle case and housing side.
[Using with bar (SST No.: 09231-H1100)]
09231-H1100 Bar
G11994669
 Installation of the differential oil seal in the transaxle case and housing side.
[Using with oil seal installer (SST No.: 09453-3L240)]
09480-A3800 Inhibitor switch neutral fixed pin
G11994670
 When installing the manual control lever on the inhibitor switch, used to align the neutral position.

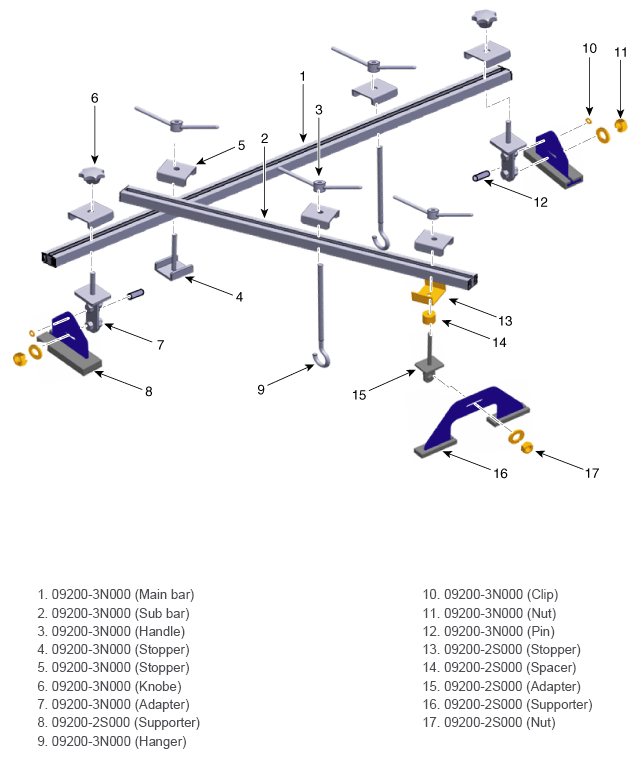

Fig 1: Engine Support Fixture Special Tool Assembly Drawing
G11994671Courtesy of HYUNDAI MOTOR AMERICA
