Section 18 (Valve Body - 2.0L (Except HEV))
>>
Valve Body
>>
Description And Operation
>>
Description
>>
Valve Body Flow
Valve Body Flow
WARNING:
This page is about a different variant/trim than selected.

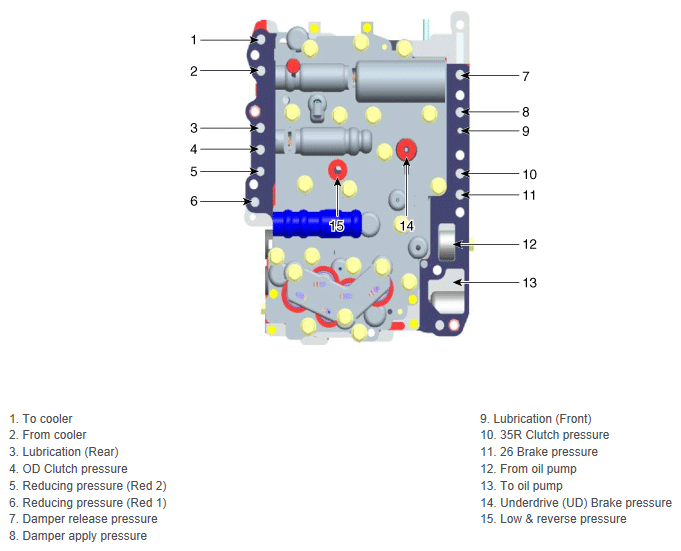

Fig 1: Valve Body Components
Courtesy of HYUNDAI MOTOR AMERICA
