Section 18 (Valve Body - 2.0L (Except HEV))
>>
Valve Body
>>
Components And Components Location
>>
Components Location (1)
Components Location (1)
WARNING:
This page is about a different variant/trim than selected.

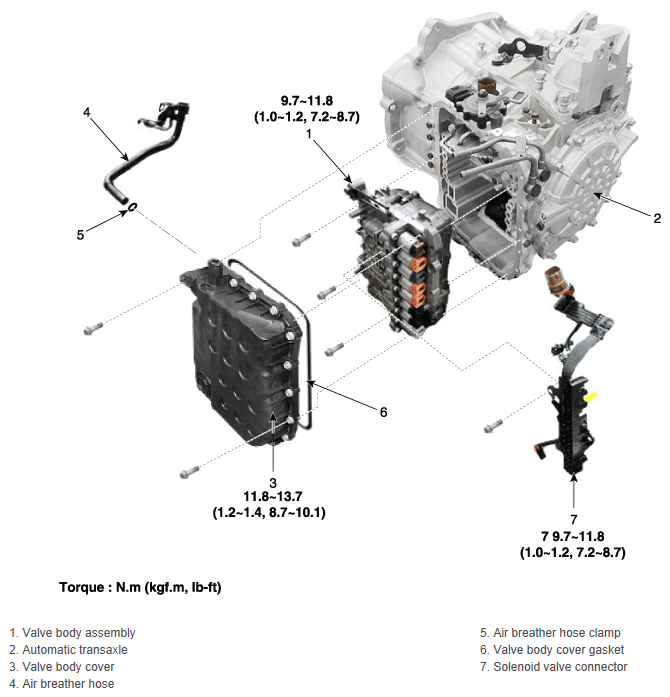

Fig 1: Valve Body Components With Torque Specification (1)
Courtesy of HYUNDAI MOTOR AMERICA
