Section 17 (Automatic Transaxle System - 2.0L (Except HEV))
>>
Automatic Transaxle
>>
Components And Components Location
>>
Components Location (1)
Components Location (1)
WARNING:
This page is about a different variant/trim than selected.

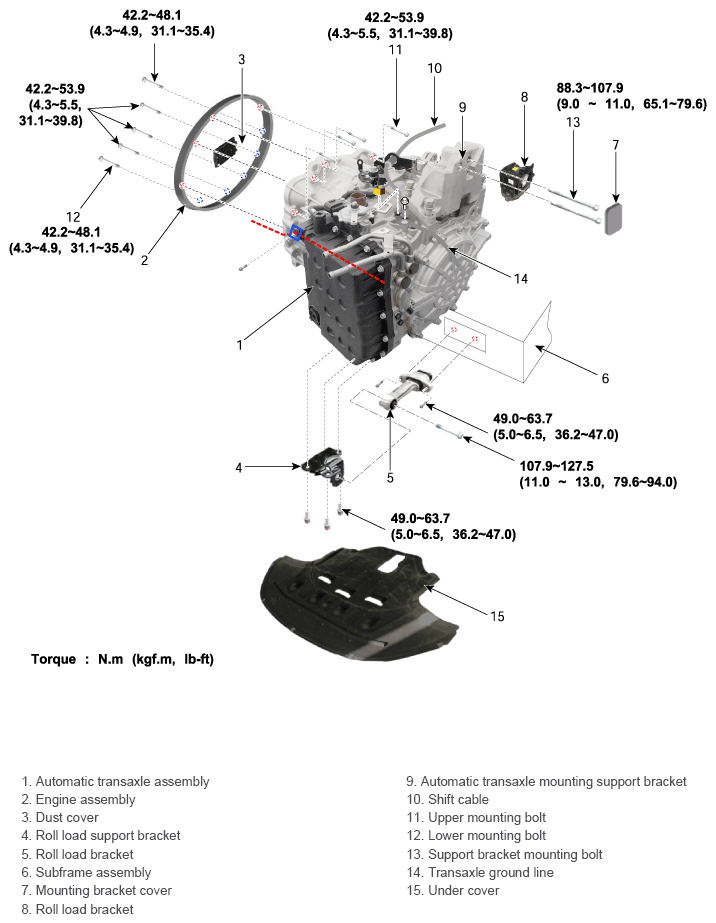

Fig 1: Automatic Transaxle Components With Torque Specifications (1)
Courtesy of HYUNDAI MOTOR AMERICA
