Section 12 (Engine Cooling System - 1.6L (Except HEV))
>>
Cooling Fan
>>
Schematic Diagrams
Schematic Diagrams
WARNING:
This page is about a different variant/trim than selected.
Circuit Diagram

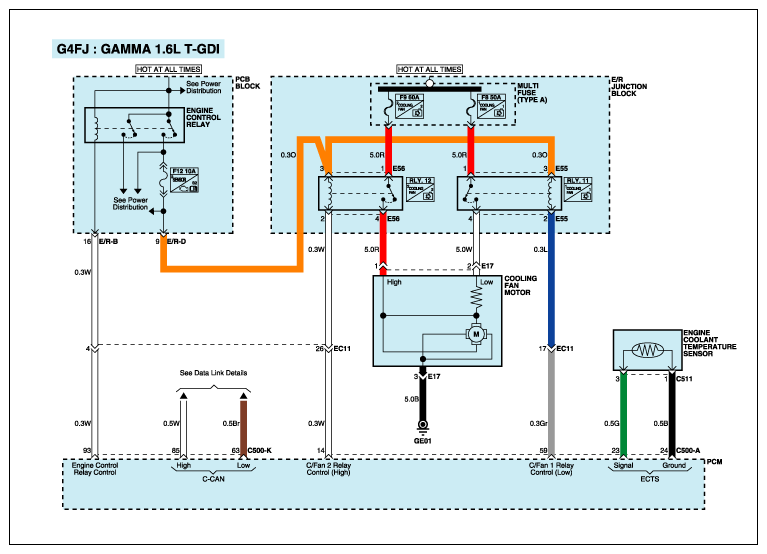

Fig 1: Cooling Fan Circuit
Courtesy of HYUNDAI MOTOR AMERICA
