Section 1 (Fuel Delivery System - 1.6L (Except HEV))
>>
Fuel Pump Control Module (FPCM)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

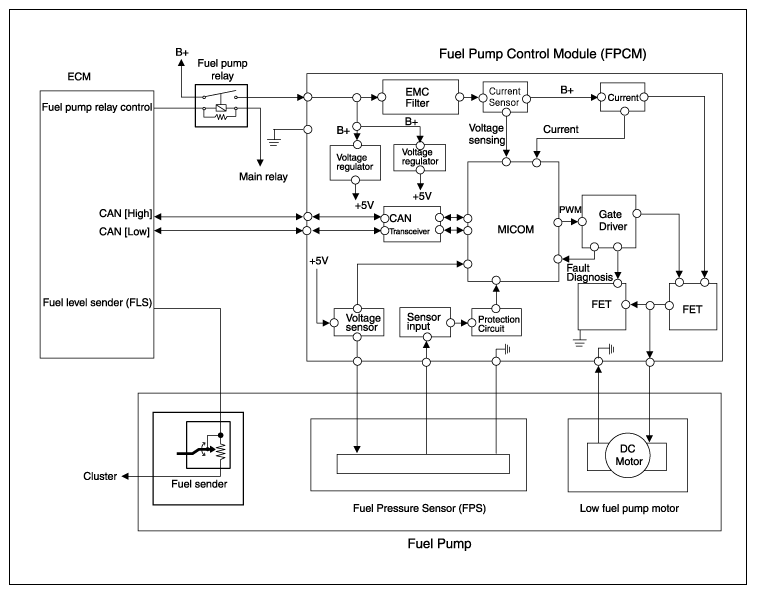

Fig 1: Fuel Pump Control Module Circuit
Courtesy of HYUNDAI MOTOR AMERICA
