Section 1 (Fuel Delivery System - 1.6L (Except HEV))
>>
Components And Components Location
>>
Components Location
>>
[Fuel Tank]
[Fuel Tank]
WARNING:
This page is about a different variant/trim than selected.

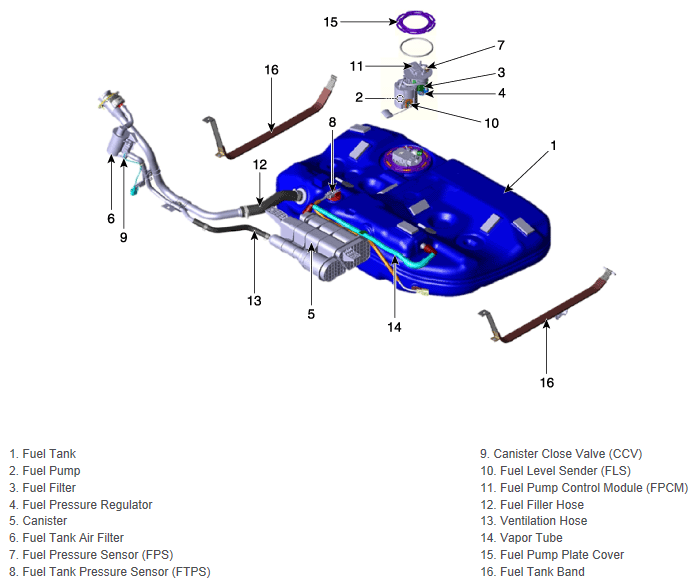

Fig 1: Fuel Tank Components
Courtesy of HYUNDAI MOTOR AMERICA
