Section 1 (Fuel Delivery System - 1.6L (Except HEV))
>>
Components And Components Location
>>
Components Location
>>
[Fuel Pump Assembly]
[Fuel Pump Assembly]
WARNING:
This page is about a different variant/trim than selected.

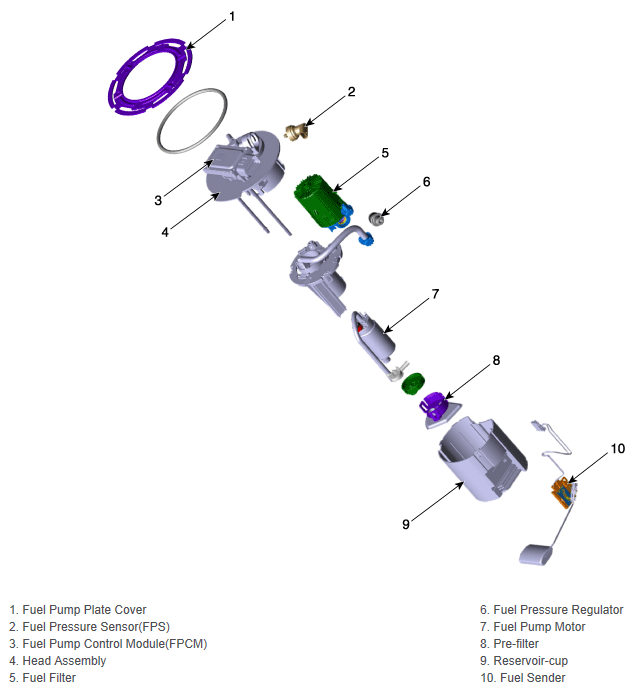

Fig 1: Fuel Pump Assembly Components
Courtesy of HYUNDAI MOTOR AMERICA
