Circuit Diagram

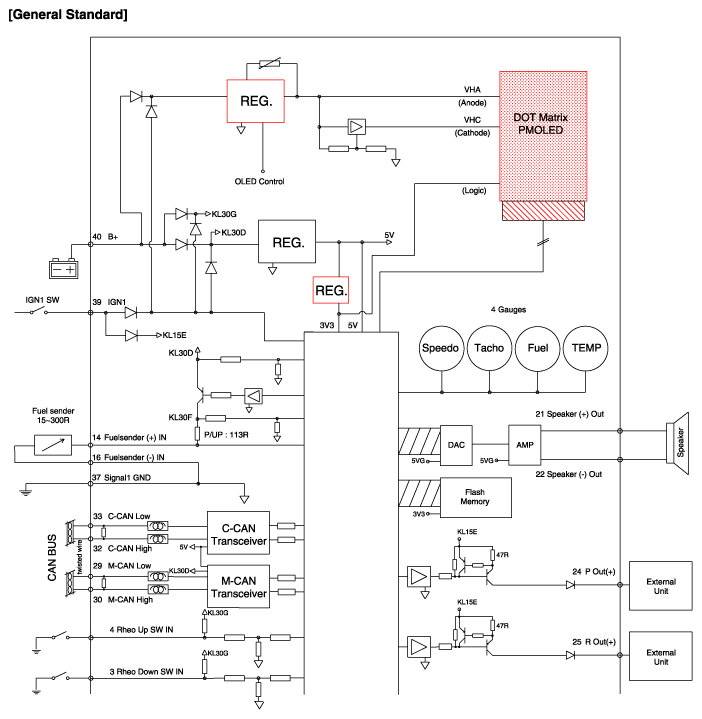

Fig 1: General Standard Instrument Cluster Circuit (1 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

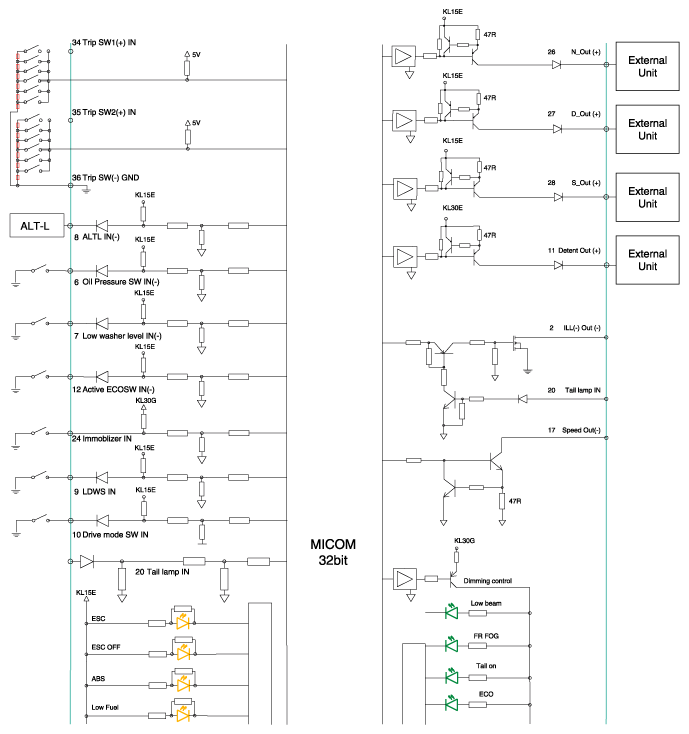

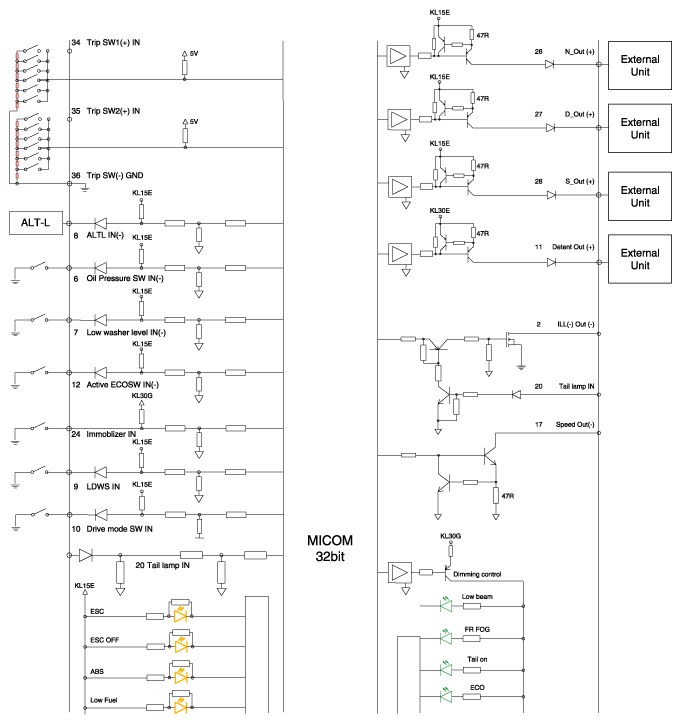

Fig 2: General Standard Instrument Cluster Circuit (2 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

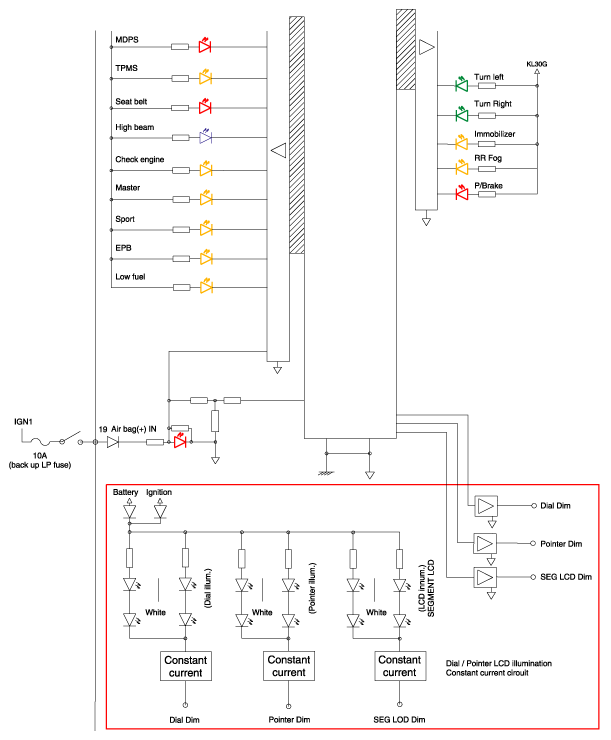

Fig 3: General Standard Instrument Cluster Circuit (3 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

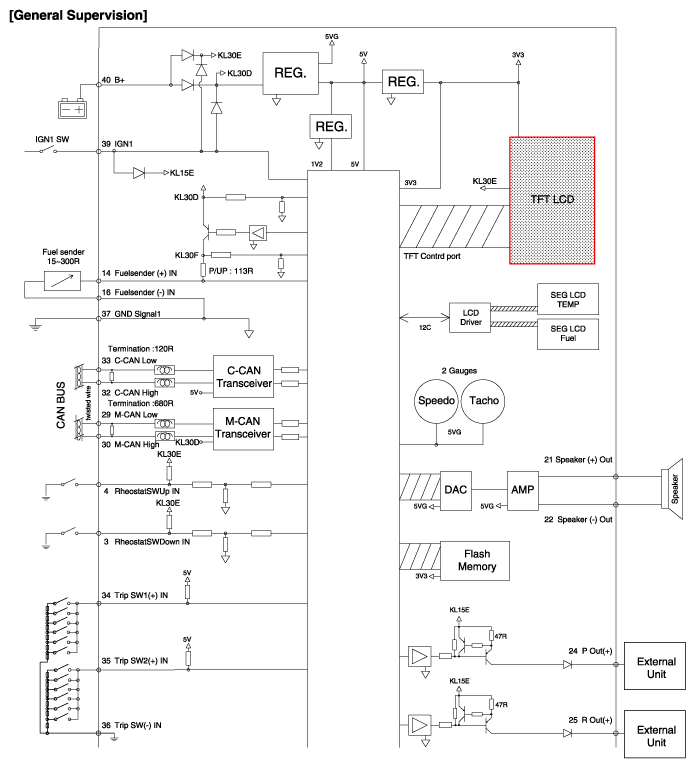

Fig 4: General Super Vision Instrument Cluster Circuit (1 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: General Super Vision Instrument Cluster Circuit (2 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

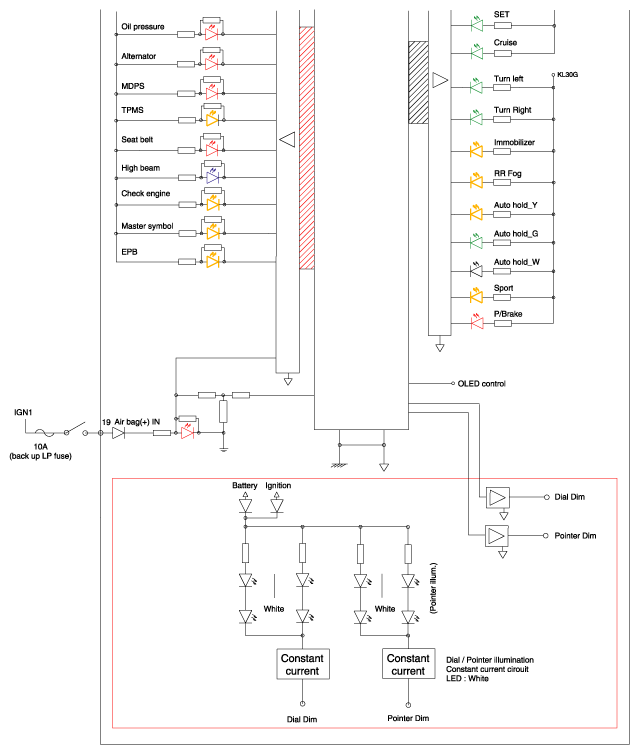

Fig 6: General Super Vision Instrument Cluster Circuit (3 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

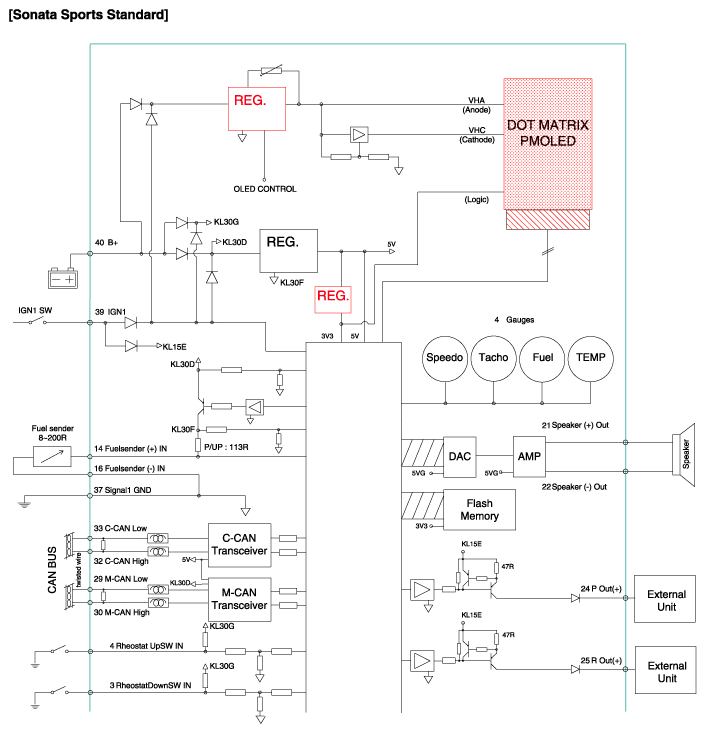

Fig 7: Sonata Sports Standard Instrument Cluster Circuit (1 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

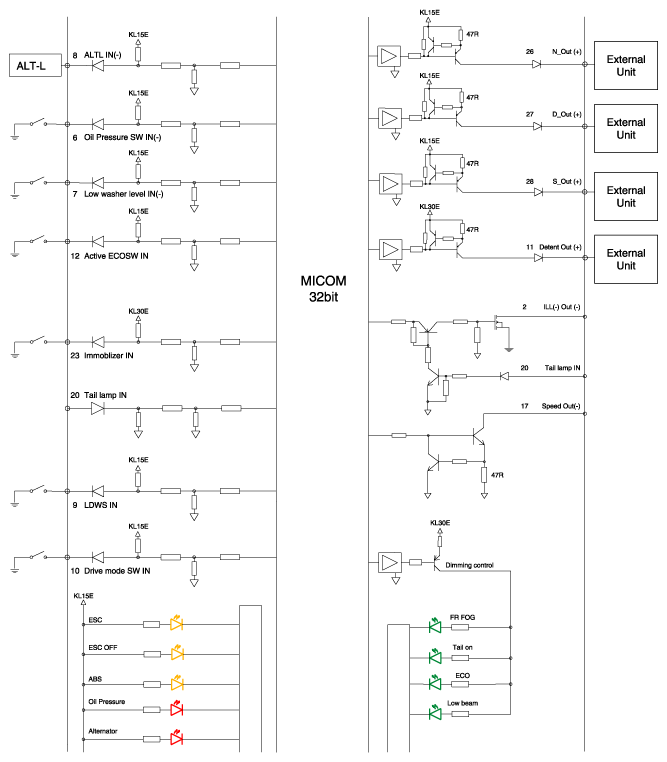

Fig 8: Sonata Sports Standard Instrument Cluster Circuit (2 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

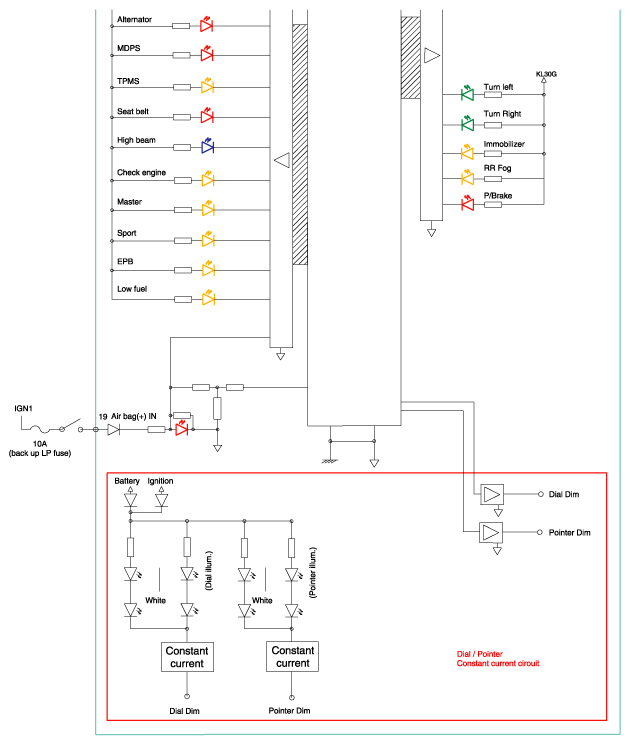

Fig 9: Sonata Sports Standard Instrument Cluster Circuit (3 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

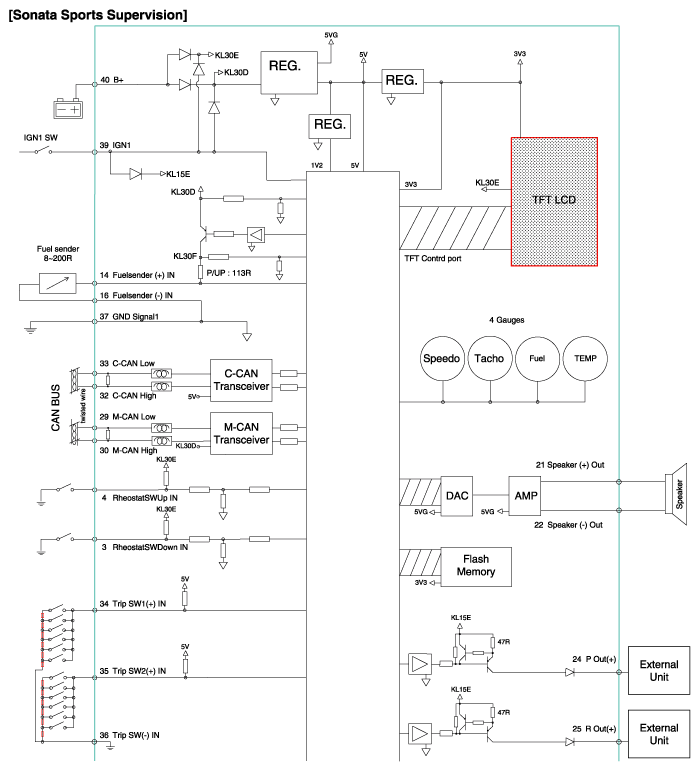

Fig 10: Sonata Sports Super Vision Instrument Cluster Circuit (1 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

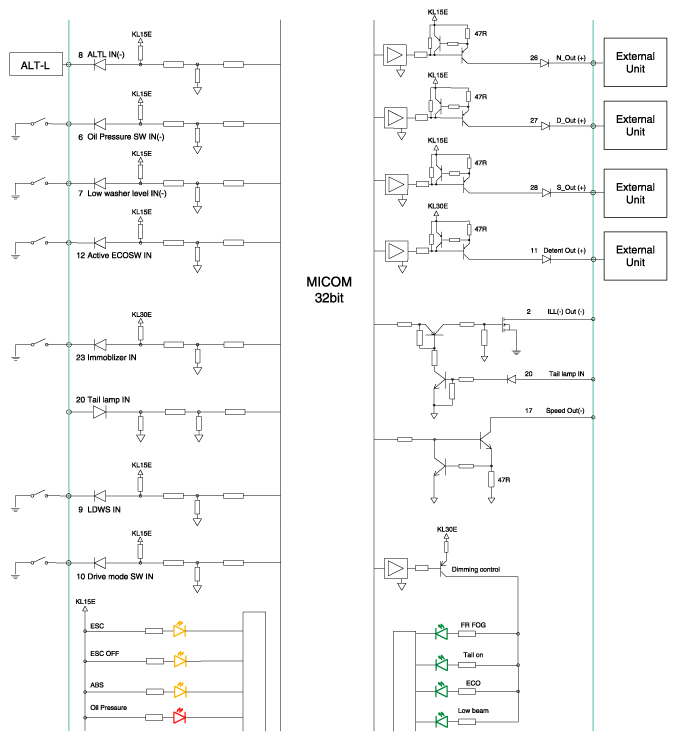

Fig 11: Sonata Sports Super Vision Instrument Cluster Circuit (2 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

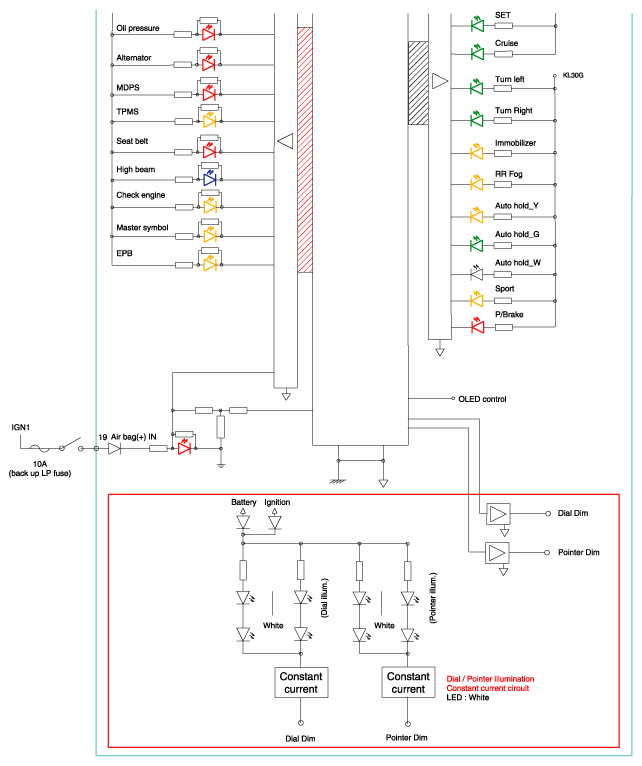

Fig 12: Sonata Sports Super Vision Instrument Cluster Circuit (3 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA
