Repair Procedures: Replacement

CAUTION:
  • Put on gloves to protect your hands.
NOTE:
  • When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front pillar trim.

    (Refer to Interior Trim - "FRONT PILLAR TRIM ")

  3. Remove the cowl side trim.

    (Refer to Interior Trim - "COWL SIDE TRIM ")

  4. Remove the AVN head unit.

    (Refer to Body Electrical System - "AVN HEAD UNIT ")

  5. Remove the instrument cluster.

    (Refer to Body Electrical System - "INSTRUMENT CLUSTER ")

  6. Remove the crash pad side garnish assembly.

    (Refer to Crash Pad - "CRASH PAD SIDE GARNISH ASSEMBLY [RH] ")

  7. Down the steering column after loosening the mounting bolts. (Refer to Steering System - "Steering Column and Shaft")
  8. Remove the multifunction switch assembly.

    (Refer to Body Electrical System - "Multifunction Switch")MULTIFUNCTION SWITCH

  9. Remove the knee airbag (KAB) module.

    (Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")

  10. Remove the indoor antenna.

    (Refer to Body Electrical System - "SMART KEY UNIT ")

  11. After loosening the mounting screws, then remove the crash pad upper panel [LH] (A).
    Fig 1: Locating Crash Pad Upper Panel (LH) With Mounting Screws
    G11988155Courtesy of HYUNDAI MOTOR AMERICA
  12. Disconnect the photo sensor connector (A).
    Fig 2: Locating Photo Sensor Connector
    G11988156Courtesy of HYUNDAI MOTOR AMERICA
  13. Loosen the mounting bolts (A).
    Fig 3: Locating Mounting Bolts
    G11988157Courtesy of HYUNDAI MOTOR AMERICA
  14. Disconnect the passenger's airbag connectors (B).
    Fig 4: Locating Passenger'S Airbag Connectors
    G11988158Courtesy of HYUNDAI MOTOR AMERICA
  15. After loosen the mounting screws, remove the crash pad center lower cover (A).

    [LH]

    Fig 5: Locating Crash Pad Center Lower Cover (LH) With Mounting Screws
    G11988159Courtesy of HYUNDAI MOTOR AMERICA

    [RH]

    Fig 6: Locating Crash Pad Center Lower Cover (RH) With Mounting Screws
    G11991434Courtesy of HYUNDAI MOTOR AMERICA

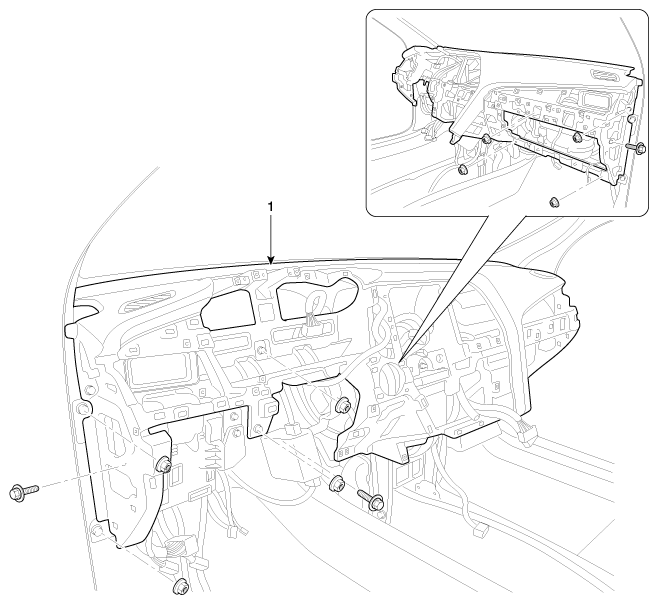

  16. After loosening the mounting bolts and nuts, then remove the main crash pad assembly (A).
    Fig 7: Locating Main Crash Pad Assembly With Mounting Bolts And Nuts
    G11988160Courtesy of HYUNDAI MOTOR AMERICA
  17. Right before removing the main crash pad, slightly lift the main crash pad and remove the twitter speaker connector (A) and mounting clip located at the end of both side.

    [LH]

    Fig 8: Locating Twitter Speaker Connector (LH)
    G11988161Courtesy of HYUNDAI MOTOR AMERICA

    [RH]

    Fig 9: Locating Twitter Speaker Connector (RH)
    G11988162Courtesy of HYUNDAI MOTOR AMERICA

    [Center]

    Fig 10: Locating Twitter Speaker Connector (Center)
    G11988163Courtesy of HYUNDAI MOTOR AMERICA
  18. Install in the reverse order of removal.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti-theft code for the radio, then enter the customer's radio station presets.
