Repair Procedures: Replacement

CAUTION:

Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Disconnect the stopper (B) from the glove box (A).

Fig 1: Disconnecting Stopper From Glove Box
Courtesy of HYUNDAI MOTOR AMERICA

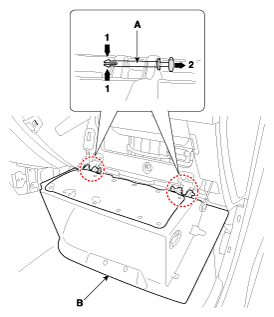

Disconnect the air damper (A) from the glove box (B).

Fig 2: Disconnecting Air Damper From Glove Box
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the pins (A) and then remove the glove box (B).

Fig 3: Disconnecting Pins
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the front door scuff trim [RH] (A).

Fig 4: Locating Front Door Scuff Trim (RH)
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the cowl side trim [RH] (A).

Fig 5: Locating Cowl Side Trim (RH)
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the crash pad under cover [RH] (A).

Fig 6: Locating Crash Pad Under Cover (RH)
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the under lamp connector (A).

Fig 7: Locating Under Lamp Connector
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the crash pad side cover [RH] (A).

Fig 8: Locating Crash Pad Garnish Assembly (RH)
Courtesy of HYUNDAI MOTOR AMERICA
After loosen the mounting screws, remove the crash pad passenger side garnish (A).

Fig 9: Locating Crash Pad Passenger Side Garnish With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
After loosen the mounting screws, remove the crash pad side garnish assembly [RH] (A).

Fig 10: Locating Crash Pad Side Garnish Assembly (RH) With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, then remove the glove box upper cover assembly (A) by using a screw driver.

Fig 11: Locating Glove Box Upper Cover Assembly With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the glove box lamp connector (A).

Fig 12: Locating Glove Box Lamp Connector
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damage clips.
