[General Standard]

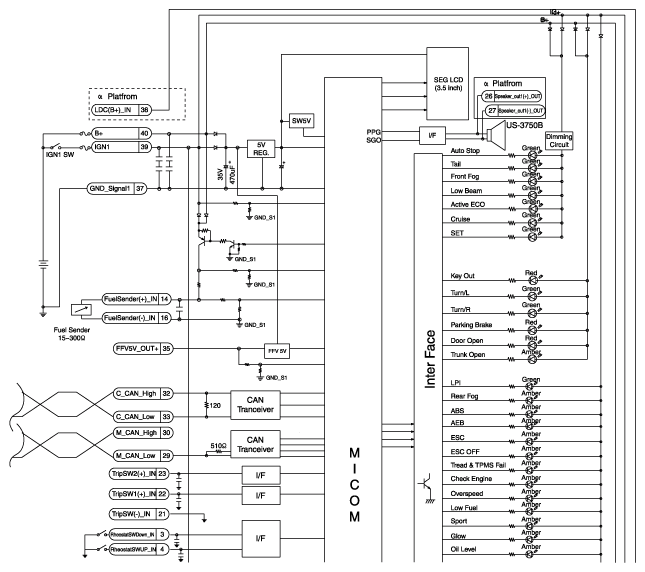

Fig 1: Instrument Cluster Circuit - General Standard (1 Of 2)
G12023517Courtesy of HYUNDAI MOTOR AMERICA

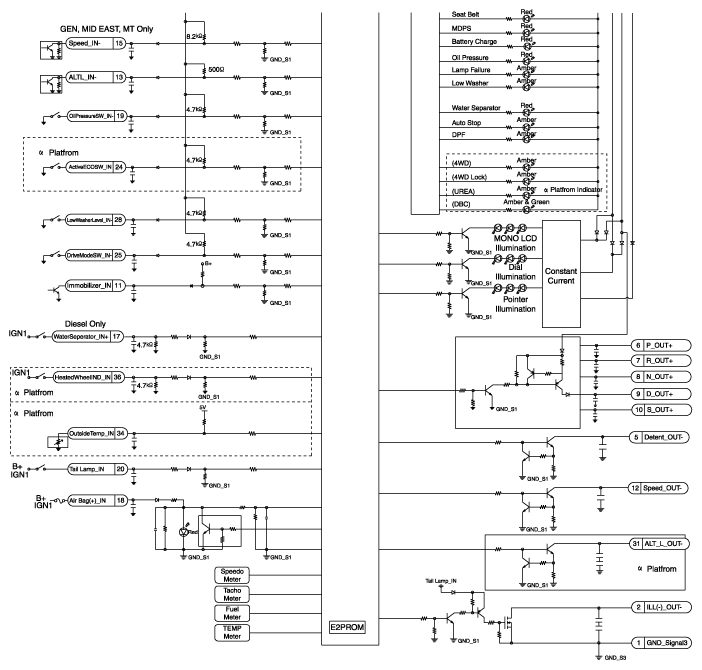

Fig 2: Instrument Cluster Circuit - General Standard (2 Of 2)
G12023518Courtesy of HYUNDAI MOTOR AMERICA
