Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Remove the cowl side trim.

   (Refer to Interior Trim - "COWL SIDE TRIM ")

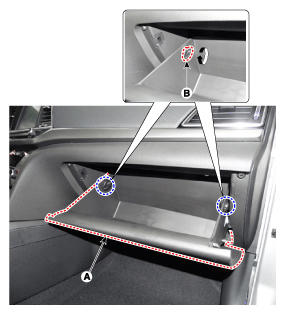

2. Remove both stoppers (B) from the glove box (A) by turning the stoppers.
   Fig 1: Locating Stoppers And Glove Box

   Courtesy of HYUNDAI MOTOR AMERICA
3. Separate the air damper (A) from the glove box (B).
   Fig 2: Separating Air Damper From Glove Box

   Courtesy of HYUNDAI MOTOR AMERICA

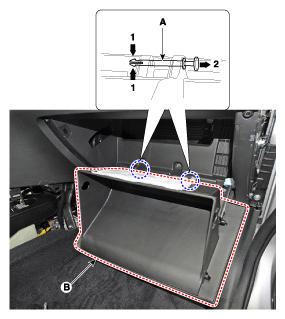

4. Disconnect the pushpins (A) and then remove the glove box (B).
   Fig 3: Disconnecting Pushpins And Glove Box

   Courtesy of HYUNDAI MOTOR AMERICA
5. Using a screwdriver or remover, remove the crash pad side cover [RH] (A).
   Fig 4: Locating Crash Pad Side Cover (RH)

   Courtesy of HYUNDAI MOTOR AMERICA
6. Using a screwdriver or remover, remove the crash pad under cover [RH] (A).
   Fig 5: Locating Crash Pad Under Cover (RH)

   Courtesy of HYUNDAI MOTOR AMERICA
7. Loosen the mounting screws and remove the crash pad molding [RH] (A).
   Fig 6: Locating Crash Pad Molding (RH) With Mounting Screws

   Courtesy of HYUNDAI MOTOR AMERICA
8. Loosen the mounting screws and remove the crash pad side garnish assembly [RH] (A).
   Fig 7: Locating Crash Pad Side Garnish Assembly (RH) With Mounting Screws

   Courtesy of HYUNDAI MOTOR AMERICA

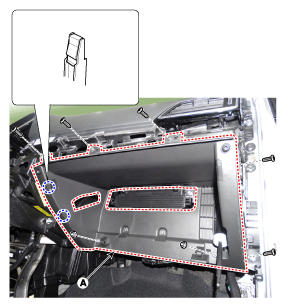

9. After loosening the mounting screws and nuts, remove the glove box upper cover assembly (A).
   Fig 8: Locating Glove Box Upper Cover Assembly With Mounting Screws And Nuts

   Courtesy of HYUNDAI MOTOR AMERICA
10. To install, reverse the removal procedure.

    Information

    • Make sure the connector are connected in properly.
    • Replace any damaged clips (or pin-type retainers).
