Repair Procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.

Information

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Using a screwdriver or remover, remove the crash pad side cover (A).
[LH]

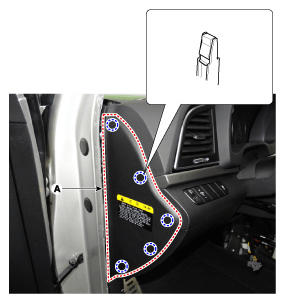

Fig 1: Locating Crash Pad Side Cover (LH)
Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Fig 2: Locating Crash Pad Side Cover (RH)
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
