Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Using a screwdriver or remover, remove the crash pad side cover (A).

   [LH]

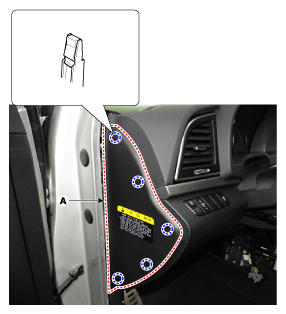

   Fig 1: Locating Crash Pad Side Cover (LH)

   Courtesy of HYUNDAI MOTOR AMERICA

   [RH]

   Fig 2: Locating Crash Pad Side Cover (RH)

   Courtesy of HYUNDAI MOTOR AMERICA
2. Loosen the mounting screws and remove the crash pad molding (A).

   [LH]

   Fig 3: Locating Crash Pad Molding With Mounting Screws (LH)

   Courtesy of HYUNDAI MOTOR AMERICA

   [RH]

   Fig 4: Locating Crash Pad Molding With Mounting Screws (RH)

   Courtesy of HYUNDAI MOTOR AMERICA
3. Using a screwdriver or remover, remove the cluster fascia panel (A).

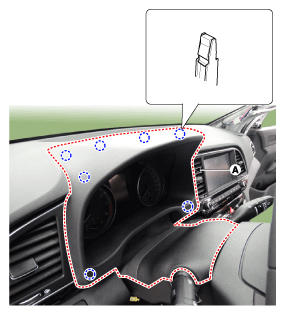

   Fig 5: Locating Cluster Fascia Panel

   Courtesy of HYUNDAI MOTOR AMERICA
4. To install, reverse the removal procedure.

   Information

   • Make sure the connector are connected in properly.
   • Replace any damaged clips (or pin-type retainers).
