Repair Procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.

Information

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Remove the cluster fascia panel.
(Refer to Cluster Pad - "CENTER FASCIA PANEL ")
Loosen the mounting screws and remove the center fascia panel (A).

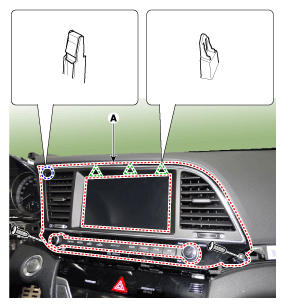

Fig 1: Locating Center Fascia Panel With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
