Circuit Diagram

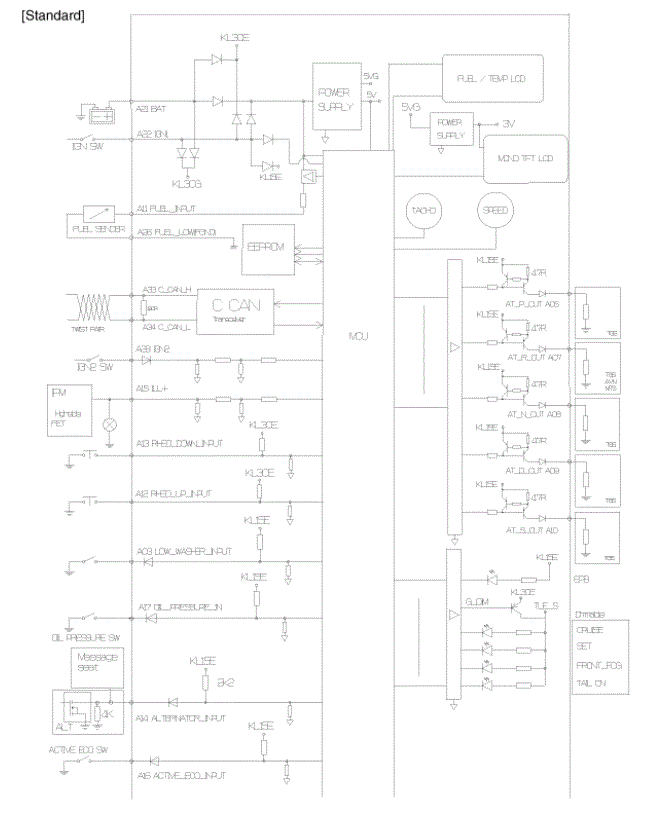

Fig 1: Instrument Cluster - Standard Circuit (1 Of 3)
G12092983Courtesy of HYUNDAI MOTOR AMERICA

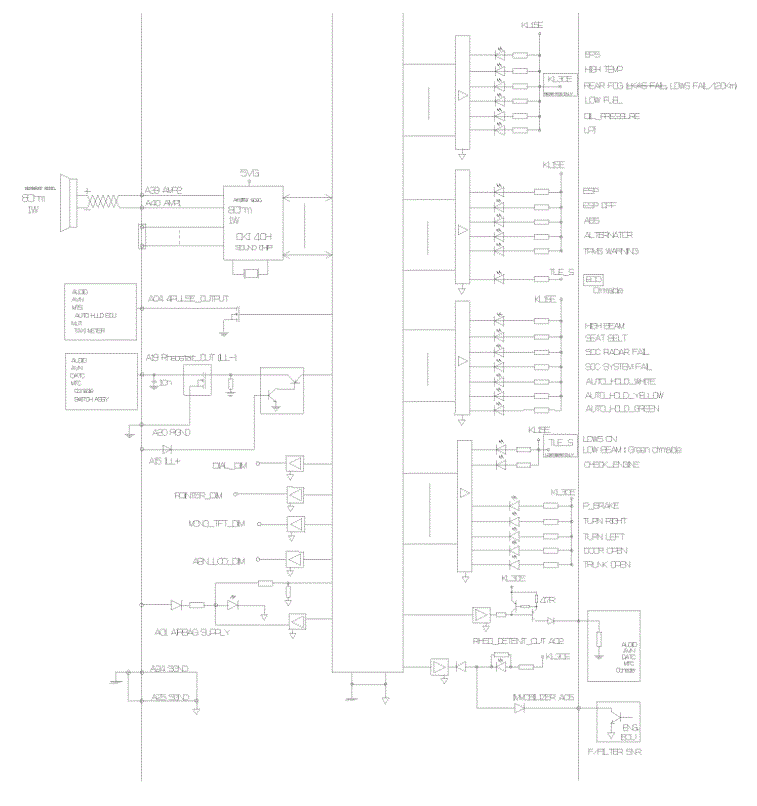

Fig 2: Instrument Cluster - Standard Circuit (2 Of 3)
G12092984Courtesy of HYUNDAI MOTOR AMERICA

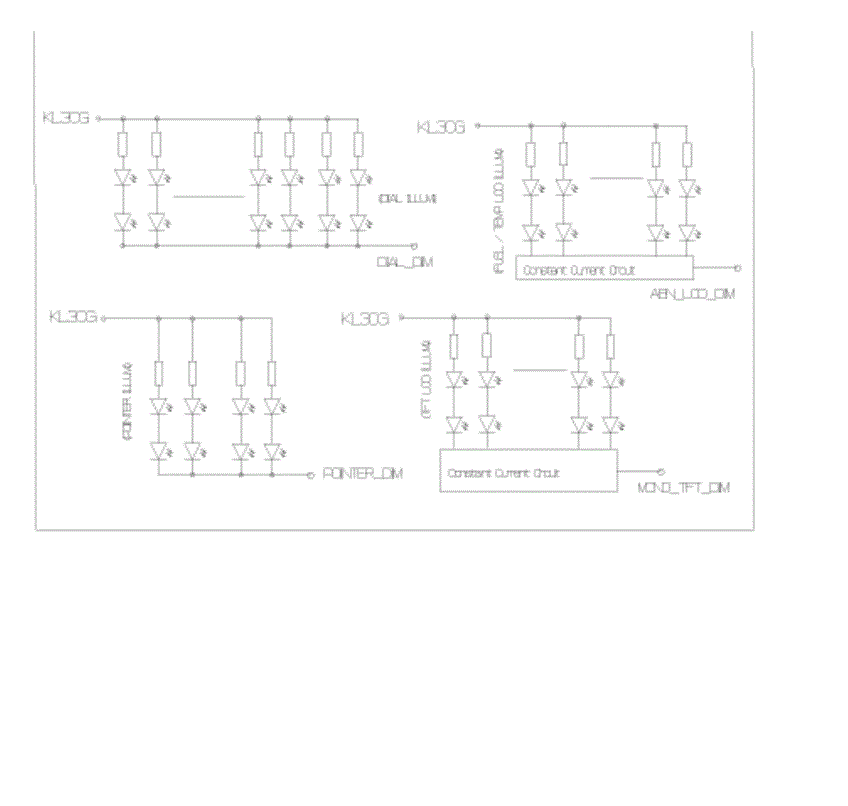

Fig 3: Instrument Cluster - Standard Circuit (3 Of 3)
G12092985Courtesy of HYUNDAI MOTOR AMERICA

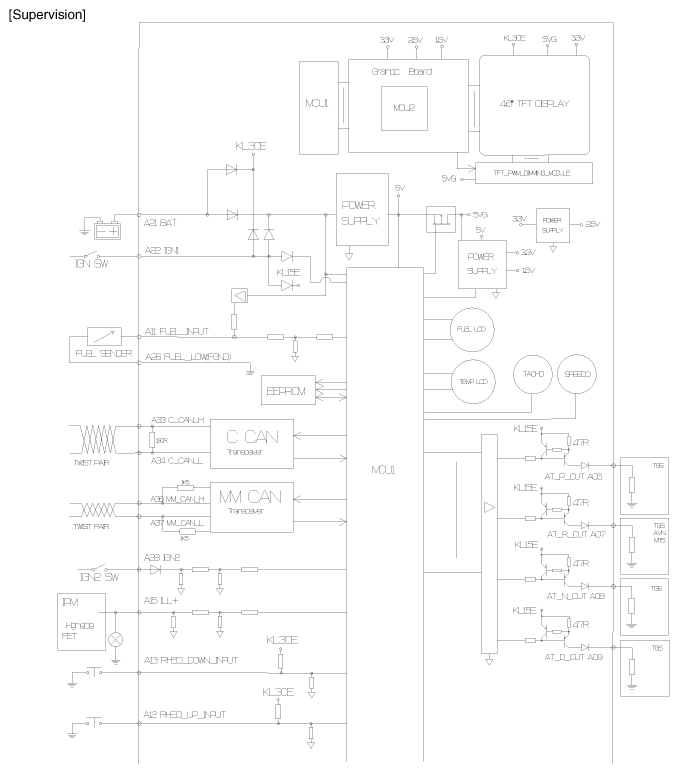

Fig 4: Instrument Cluster - Supervision Circuit (1 Of 3)
G12092986Courtesy of HYUNDAI MOTOR AMERICA

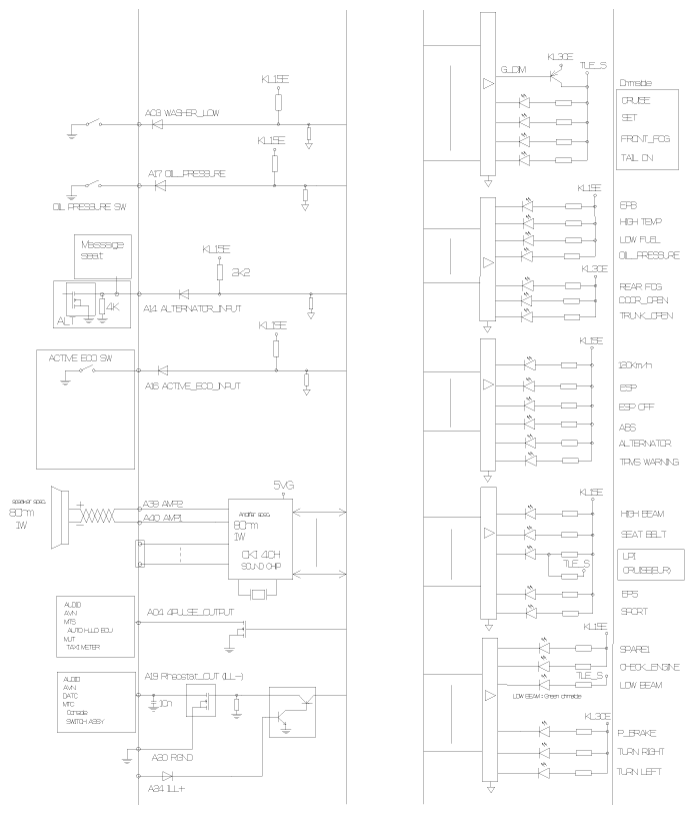

Fig 5: Instrument Cluster - Supervision Circuit (2 Of 3)
G12092987Courtesy of HYUNDAI MOTOR AMERICA

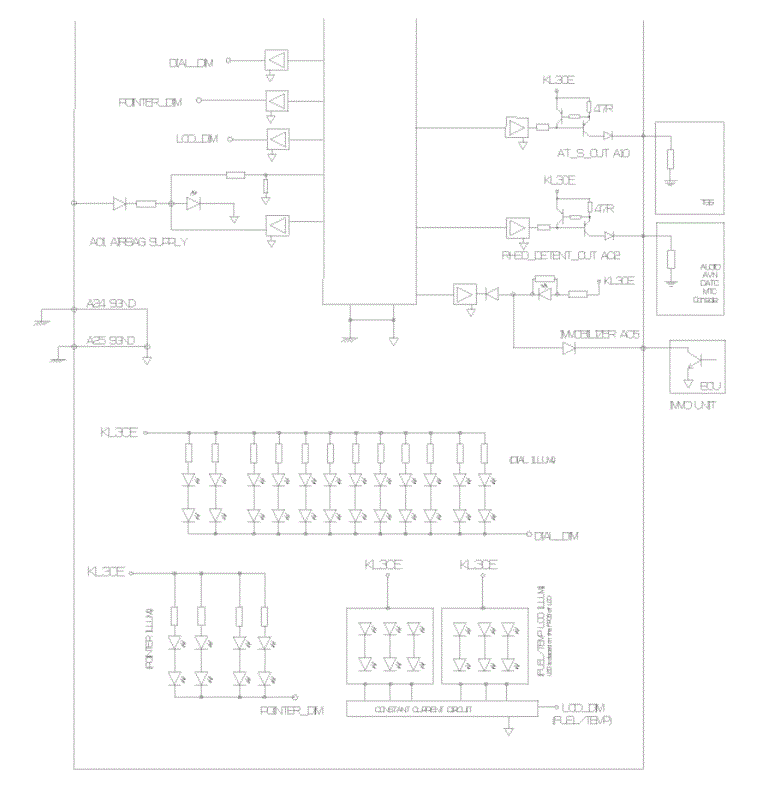

Fig 6: Instrument Cluster - Supervision Circuit (3 Of 3)
G12092988Courtesy of HYUNDAI MOTOR AMERICA
