Input/Output Specification

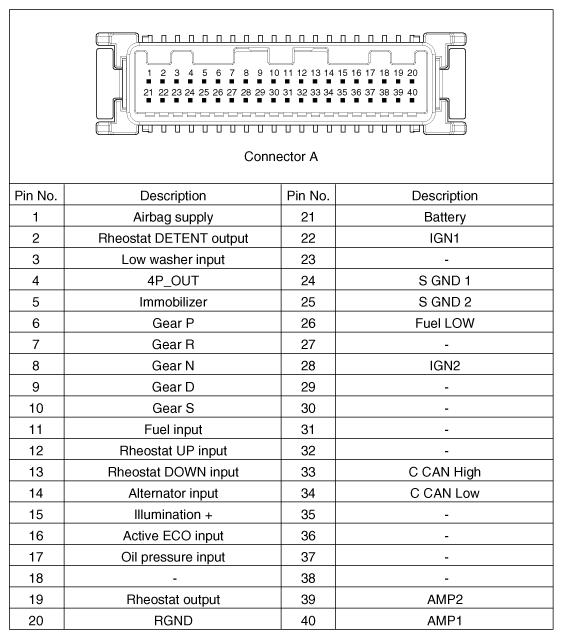

Fig 1: Instrument Cluster Connector Terminals (Input/Output)

G12092982

Courtesy of HYUNDAI MOTOR AMERICA
