Power Window Main Switch Connector End View (D02)

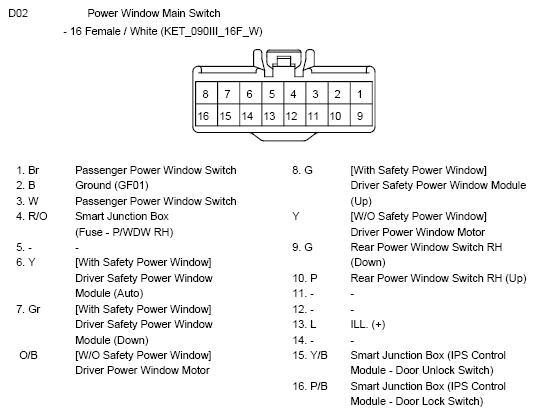

Fig 1: Power Window Main Switch Connector End View (D02)

G10786185

Courtesy of HYUNDAI MOTOR AMERICA
