Circuit Diagram - 2016

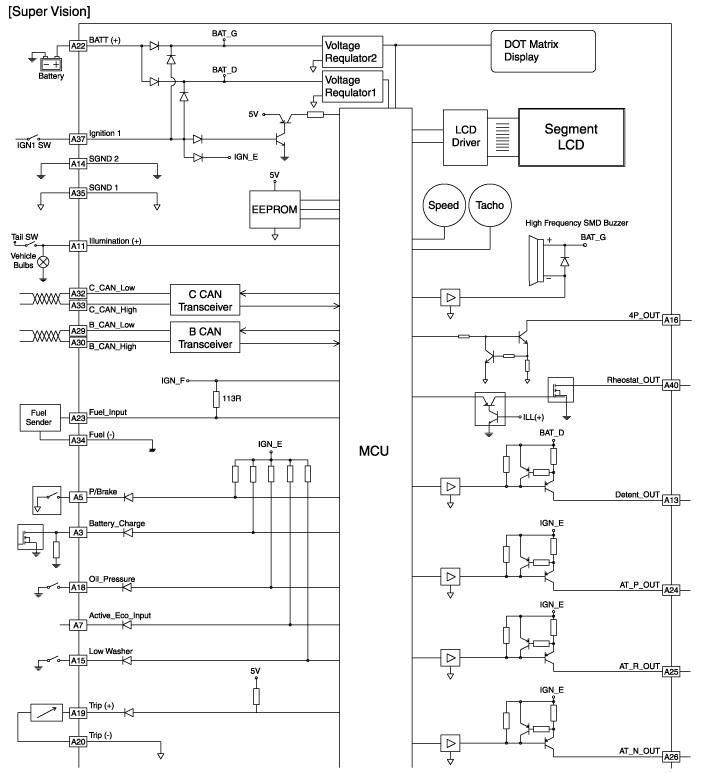

Fig 1: Instrument Cluster Circuit Diagram (1 Of 2) Super Vision
G00561494Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Instrument Cluster Circuit Diagram (2 Of 2) Super Vision
G00561495Courtesy of HYUNDAI MOTOR AMERICA

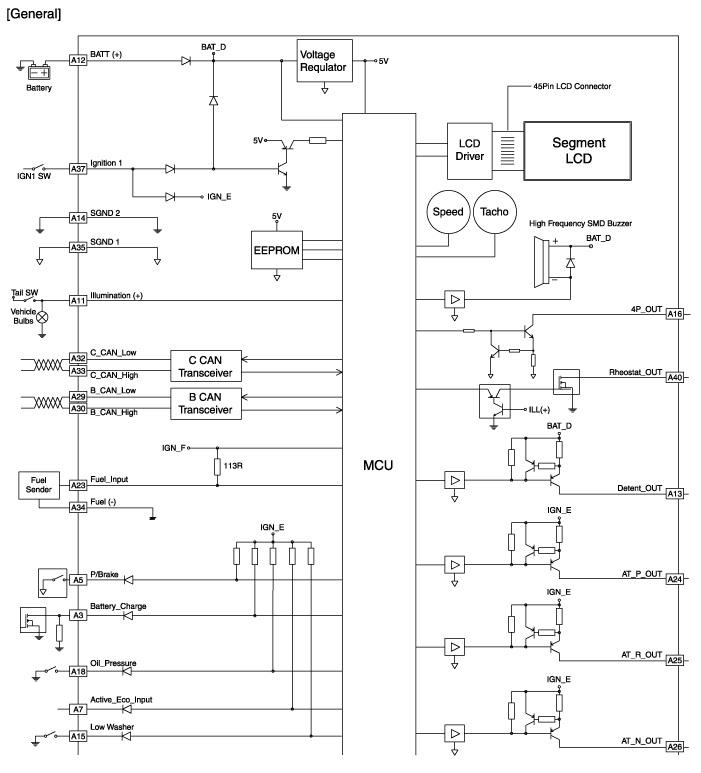

Fig 3: Instrument Cluster Circuit Diagram (1 Of 2) General Vision
G00561492Courtesy of HYUNDAI MOTOR AMERICA

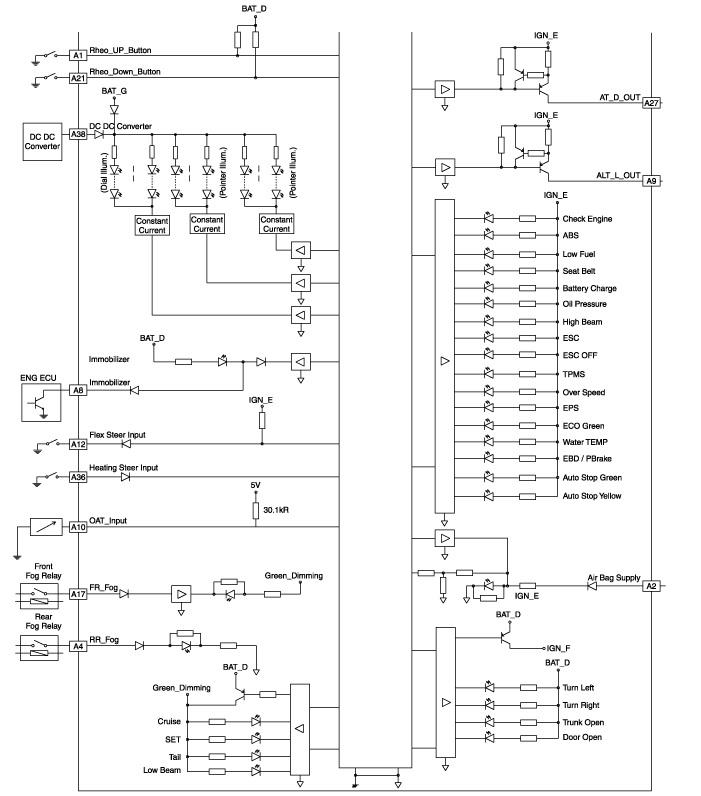

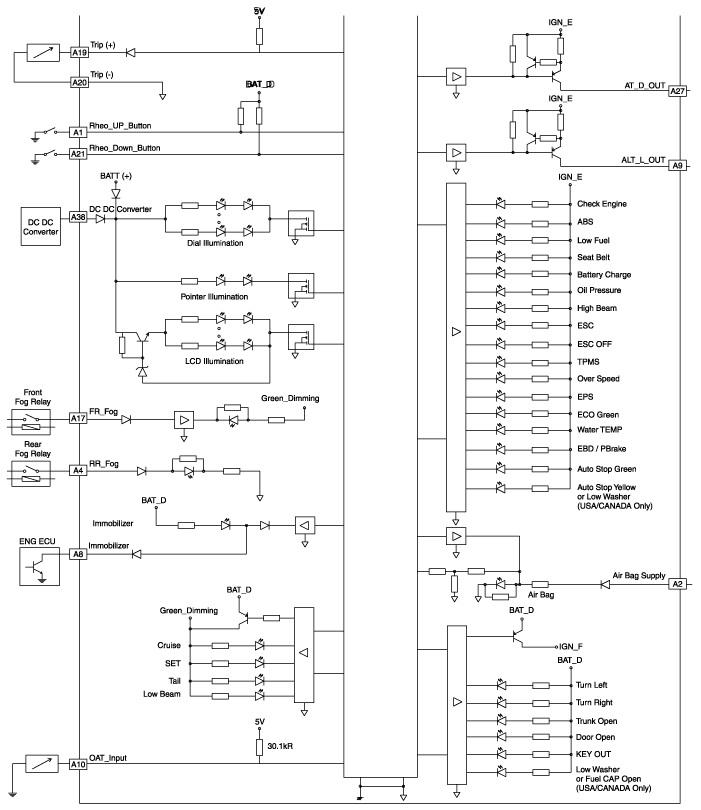

Fig 4: Instrument Cluster Circuit Diagram (2 Of 2) General Vision
G00561493Courtesy of HYUNDAI MOTOR AMERICA
