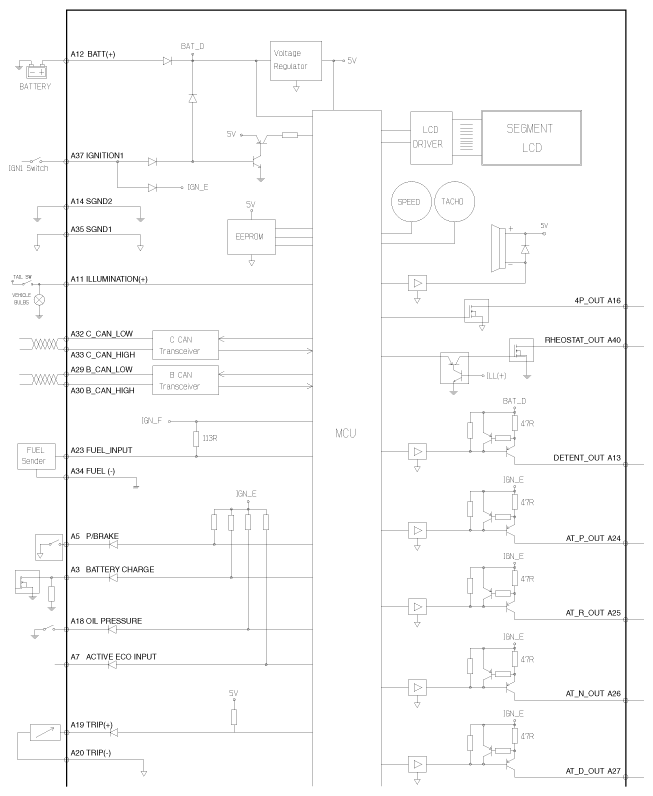

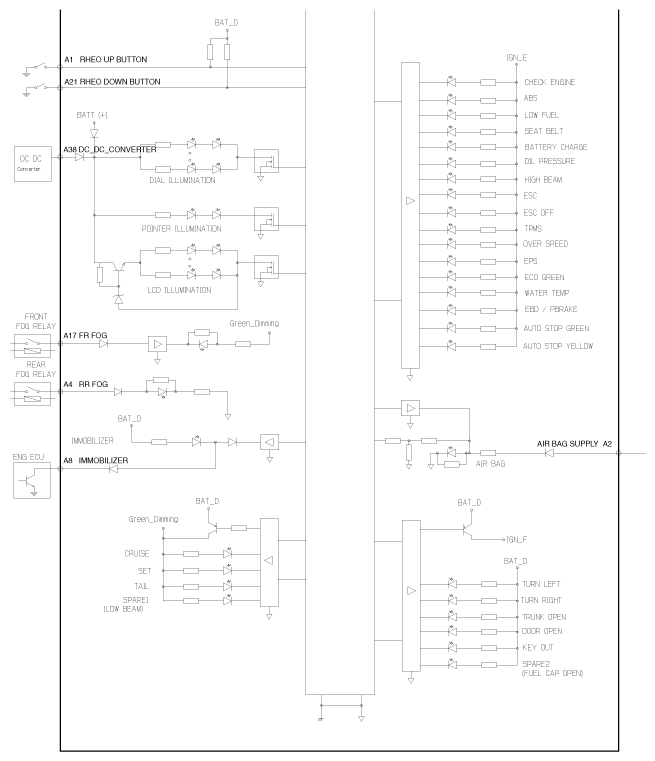

Home >> Hyundai >> 2016 >> Veloster Base, Automatic DCT Trans >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Indicators & Gauges >> Instrument Cluster >> Schematic Diagrams >> Circuit Diagram - 2015
