Instrument Cluster
>>
Components and Components Location
>>
Components - 2015
Components - 2015

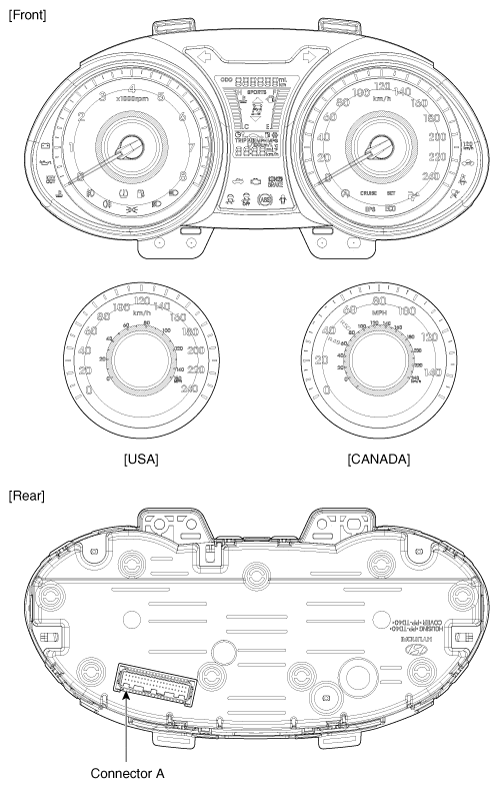

Fig 1: Display - Front Instrument Cluster (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

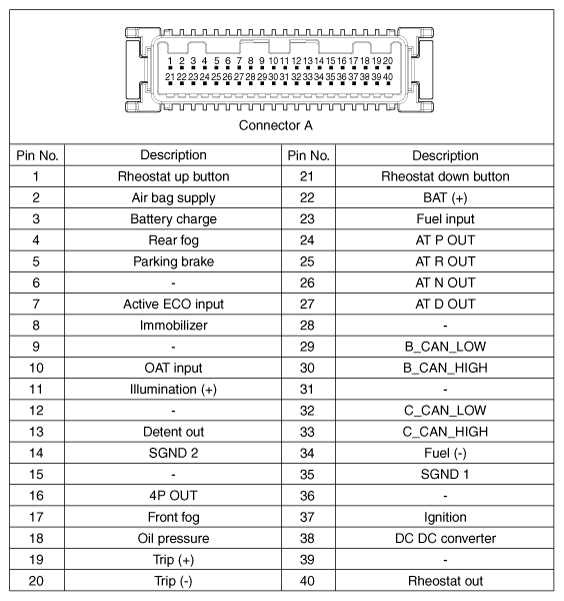

Fig 2: Display - Rear Instrument Cluster (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
