Circuit Diagram
Circuit Diagram

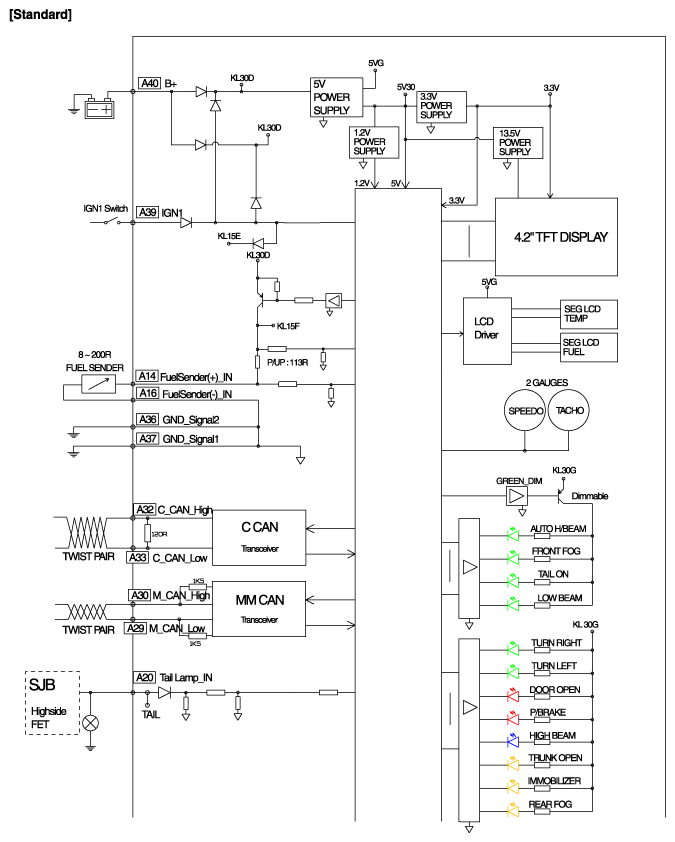

Fig 1: Instrument Cluster Circuit Diagram - Standard (1 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

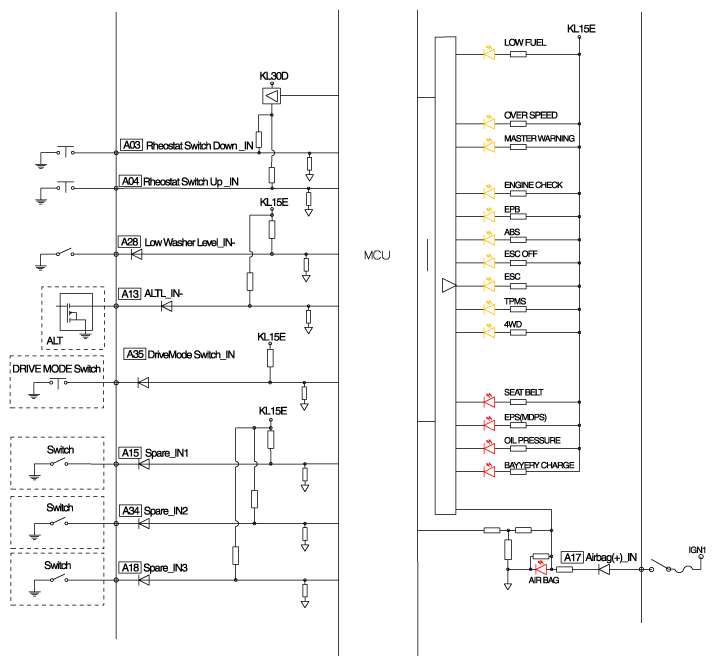

Fig 2: Instrument Cluster Circuit Diagram - Standard (2 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

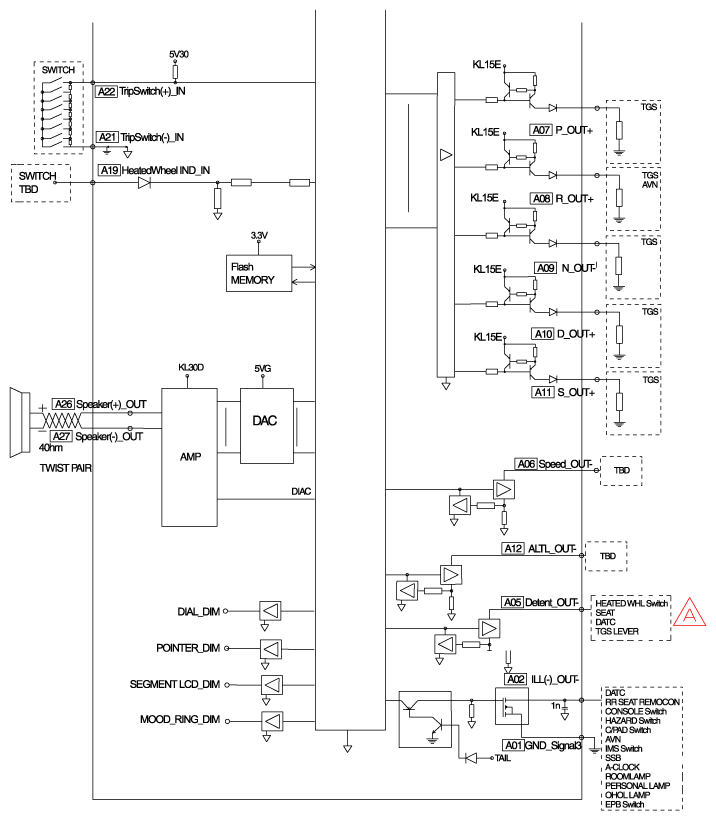

Fig 3: Instrument Cluster Circuit Diagram - Standard (3 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

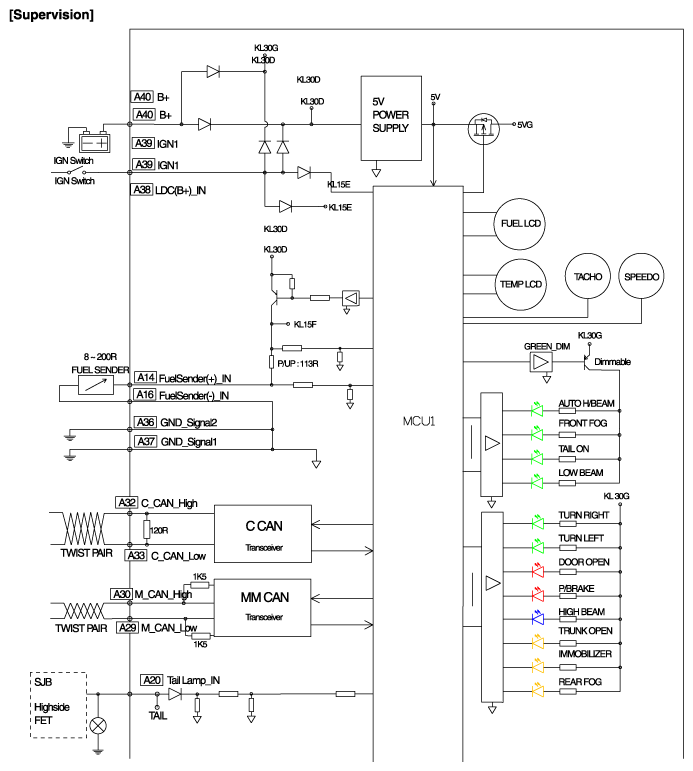

Fig 4: Instrument Cluster Circuit Diagram - Supervision (1 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

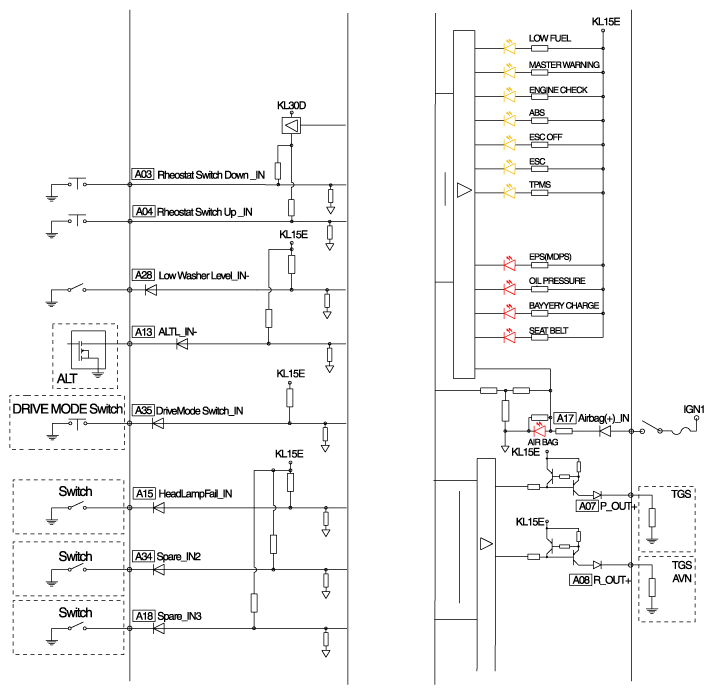

Fig 5: Instrument Cluster Circuit Diagram - Supervision (2 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

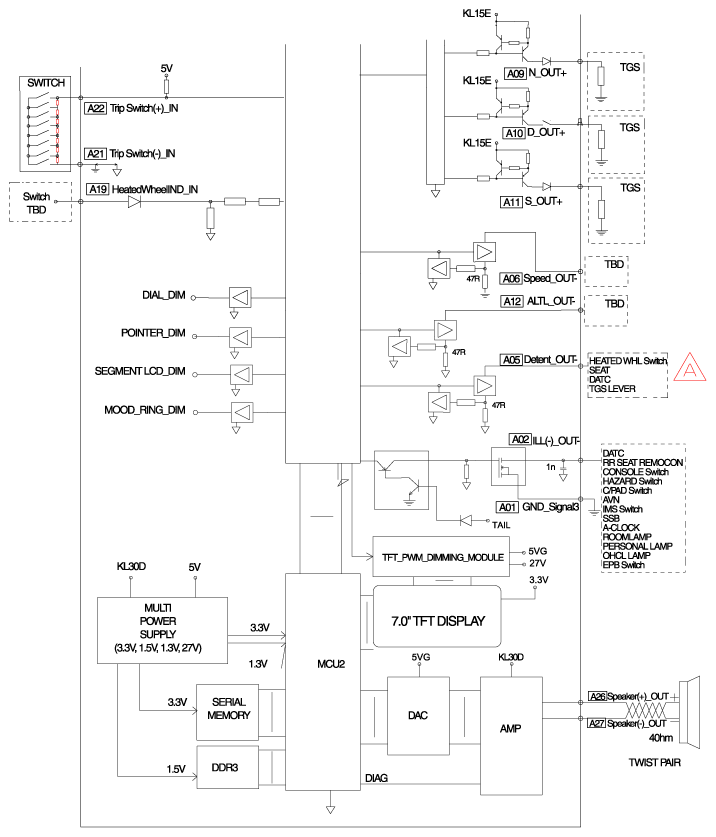

Fig 6: Instrument Cluster Circuit Diagram - Supervision (3 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
