Components and Components Location: Components

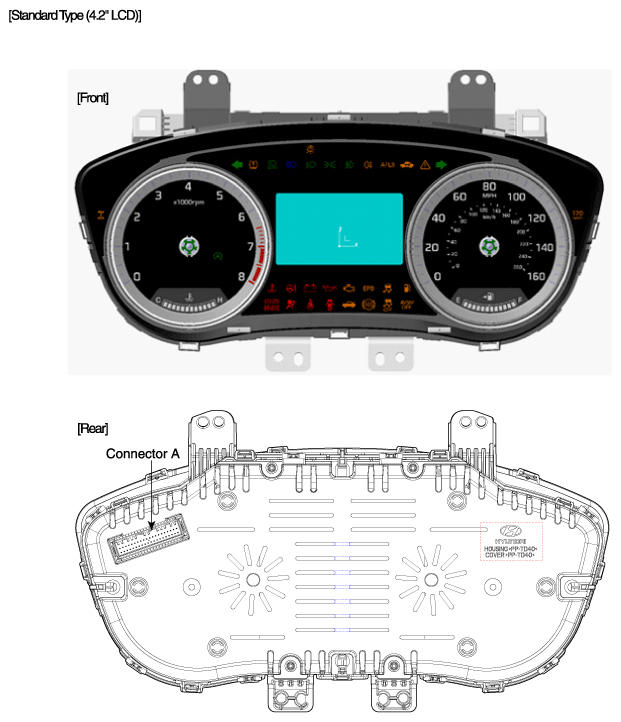

Fig 1: Instrument Cluster Connector - Standard Type (4.2 LCD)

Courtesy of HYUNDAI MOTOR AMERICA

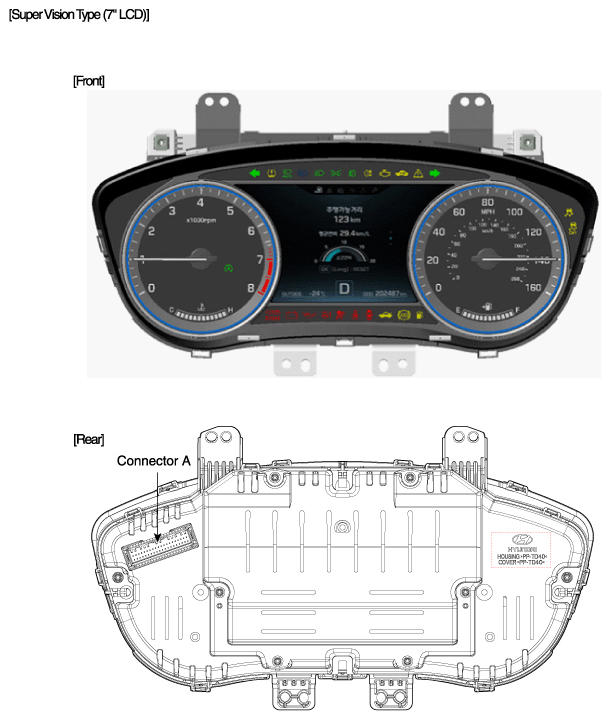

Fig 2: Instrument Cluster Connector - Super Vision Type (7 LCD)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 3: Instrument Cluster Terminals

Courtesy of HYUNDAI MOTOR AMERICA

PART DESCRIPTION

No.	Description
1	-
2	Illumination output
3	Rheostat down switch
4	Rheostat up switch
5	AT N output
6	Oil pressure
7	Low washer
8	Charge
9	AT D output
10	Illumination +
11	-
12	Active ECO
13	Heated wheel indicator
14	Fuel
15	Detent output
16	Fuel ground
17	-
18	Speaker -
19	Speaker +
20	Air bag +
21	-
22	-
23	4P output
24	Immobilizer
25	AT S output
26	AT R output
27	AT P output
28	-
29	-
30	MM_CAN High
31	MM_CAN Low
32	C_CAN High
33	C_CAN Low
34	Trip switch1
35	Trip switch2
36	Trip switch ground
37	Signal ground
38	-
39	IGN +
40	Battery +
