Repair procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Disconnect the negative (-) battery terminal.
Remove the front pillar trim.
(Refer to "FRONT PILLAR TRIM ")
Remove the cowl side trim.
(Refer to "COWL SIDE TRIM ")
Remove the AVN head unit.
(Refer to "AVN HEAD UNIT ")
Remove the instrument cluster.
(Refer to "INSTRUMENT CLUSTER ")
Remove the crash pad side garnish assembly [RH].
(Refer to "CRASH PAD SIDE GARNISH ASSEMBLY [RH] ")
Remove the steering wheel.
(Refer to "STEERING WHEEL ")
Remove the multifunction switch assembly.
(Refer to "MULTIFUNCTION SWITCH ")
After loosening the mounting screws, remove the crash pad side garnish assembly [LH] (A).

Fig 1: Crash Pad Side Garnish Assembly (LH)
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the security lamp connector (A).

Fig 2: Security Lamp Connector
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the center speaker connector (A).
LH

Fig 3: Center Speaker Connector (LH)
Courtesy of HYUNDAI MOTOR AMERICA

Center

Fig 4: Center Speaker Connector
Courtesy of HYUNDAI MOTOR AMERICA

RH

Fig 5: Center Speaker Connector (RH)
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting bolts (A) and releasing the airbag connector locking buttons, remove the passenger seat airbag connectors (B).

Fig 6: Passenger Seat Airbag Mounting Bolts And Connectors
Courtesy of HYUNDAI MOTOR AMERICA

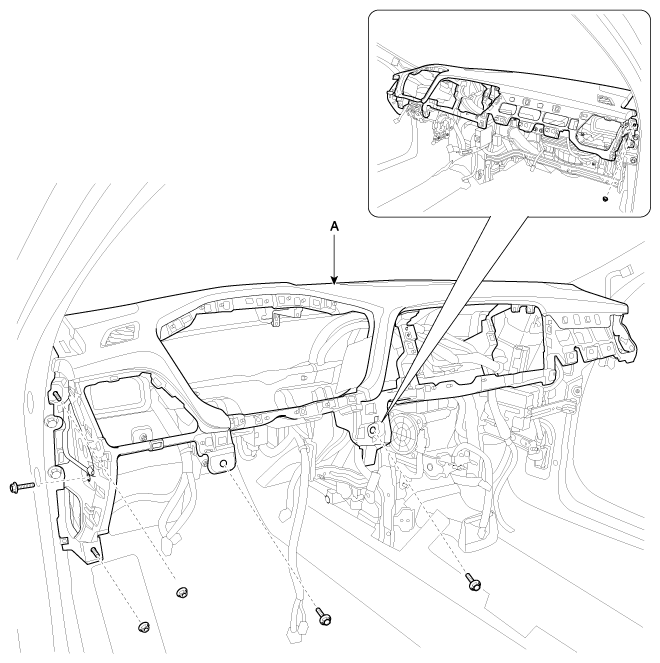

After loosening the mounting bolts and nuts, remove the main crash pad assembly (A).

Fig 7: Main Crash Pad Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
- Make sure that each of the assembly components operates properly.
- Replace any damaged clips (or pin-type retainers).
