Repair procedures: Replacement

CAUTION:

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Remove both stoppers (B) from the glove box (A) by turning the stoppers.

Fig 1: Glove Box And Stoppers
Courtesy of HYUNDAI MOTOR AMERICA

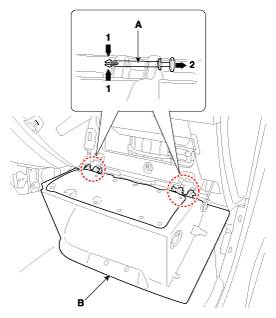

Separate the air damper (A) from the glove box (B).

Fig 2: Air Damper And Glove Box
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the pushpins (A) and then remove the glove box (B).

Fig 3: Pushpins And Glove Box
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damage clips.
