Repair procedures: Replacement

CAUTION:

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Remove the cowl side trim.
(Refer to "COWL SIDE TRIM ")
Using a screwdriver or remover, remove the crash pad side cover [LH] (A).

Fig 1: Crash Pad Side Cover (LH)
Courtesy of HYUNDAI MOTOR AMERICA

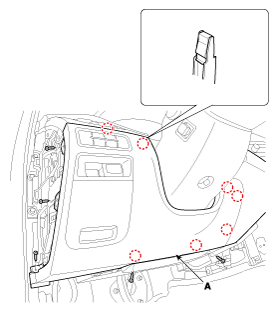

After loosening the mounting screws, remove the crash pad lower panel (A).

Fig 2: Crash Pad Lower Panel
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the diagnosis connector (A) and various connectors (B).

Fig 3: Diagnosis Connector
Courtesy of HYUNDAI MOTOR AMERICA

Fig 4: Various Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damage clips.
